𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
WIRELESS
• Standards: Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz
• Wi-Fi Speeds: N30 2.4 GHz: 300 Mbps (802.11n)
• Wi-Fi Range: 2 Bedroom Houses 2× Fixed Antennas
• Wi-Fi Capacity: Legacy
• Working Modes
• Router Mode
• Access Point Mode
• Range Extender Mode
• WISP Mode
HARDWARE
• Processor: Single-Core CPU

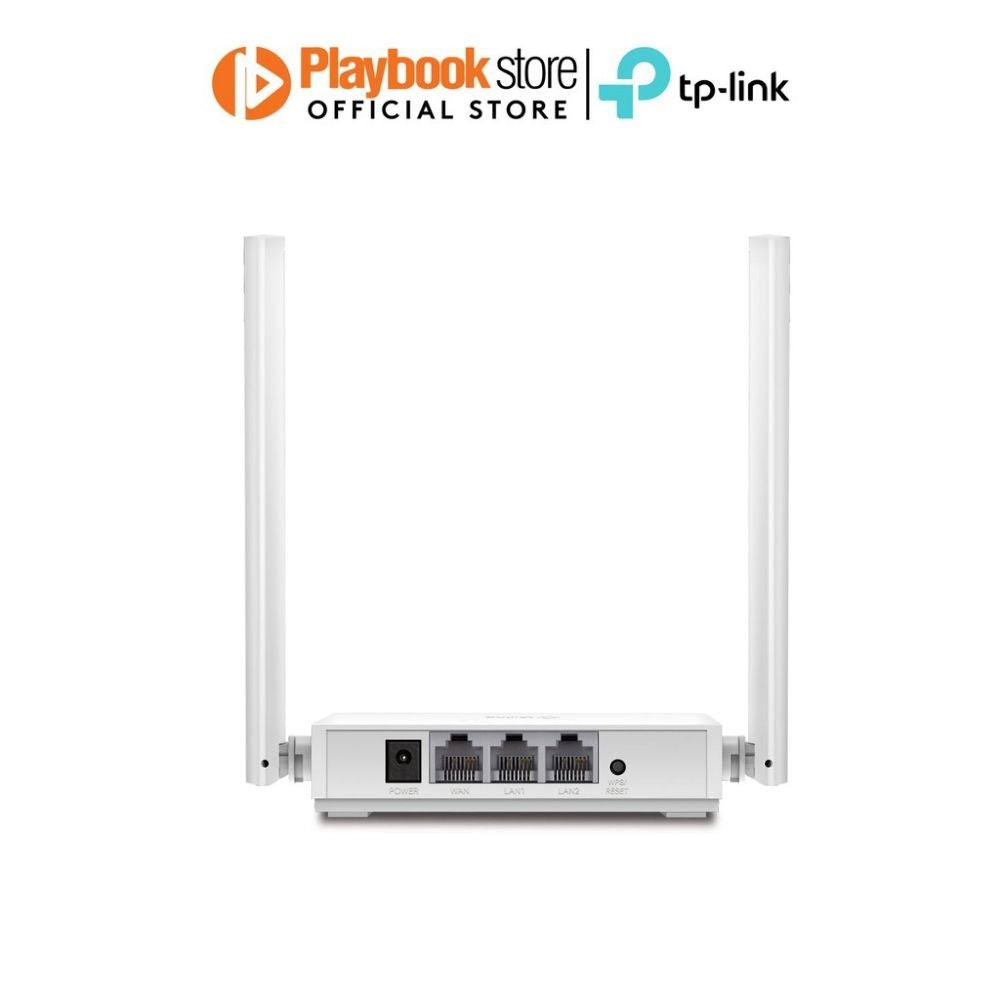

• Ethernet Ports:
• 1× 10/100 Mbps WAN Port
• 2× 10/100 Mbps LAN Ports
• Buttons: Reset Button
• Power: 5 V ⎓ 0.6 A
SECURITY
• WiFi Encryption
• WEP:
• WPA
• WPA2
• WPA/WPA2-Enterprise (802.1x)
• Network Security:
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• Guest Network: 1× 2.4 GHz Guest Network
• VPN Server:
• OpenVPN
• PPTP
SOFTWARE
• Protocols:
• IPv4
• IPv6
• Parental Controls:
• URL Filtering
• Time Controls
• WAN Types:
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
• Quality of Service: QoS by Device
• NAT Forwarding:
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
• IPTV:
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
• DHCP:
• Address Reservation
• DHCP Client List
• Server
• DDNS:
• NO-IP
• DynDNS
• Management:
• Tether App
• Webpage
OTHER
• System Requirements:
• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
• Certifications: FCC, CE, RoHS
• Environment:
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)

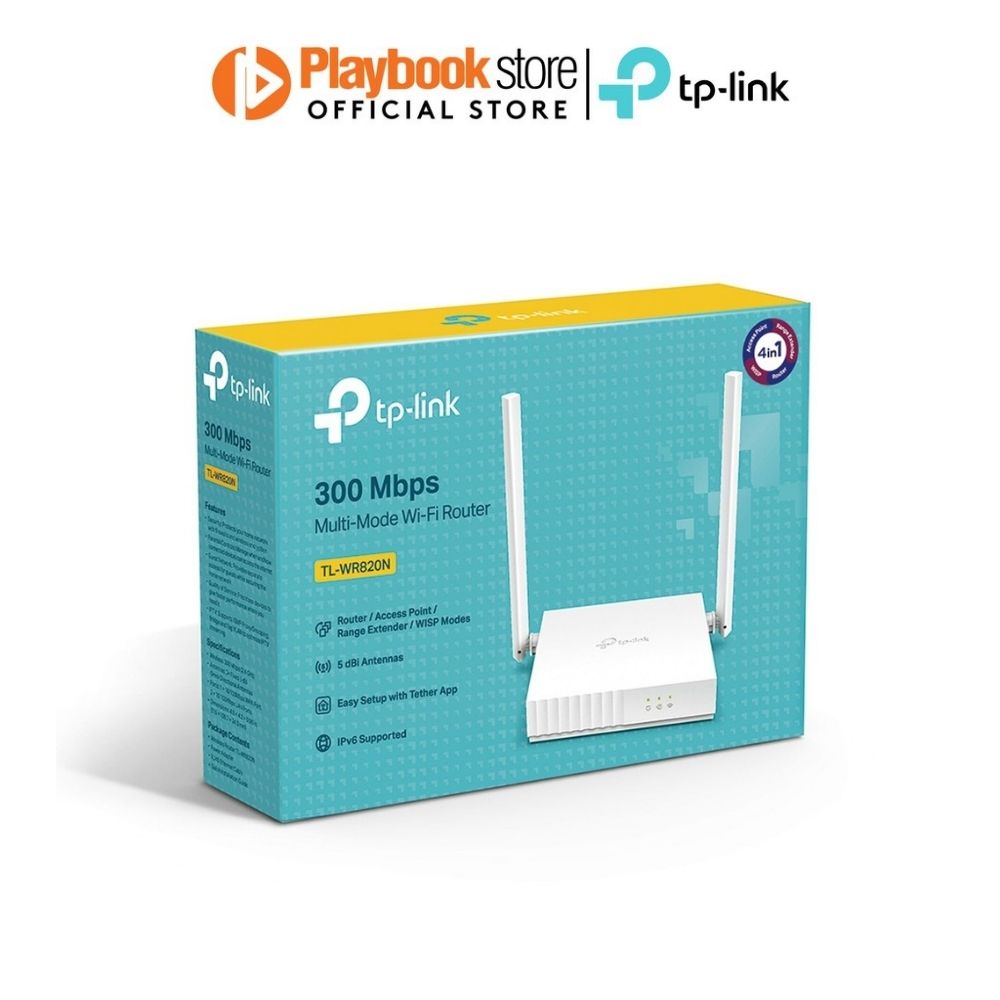

𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦

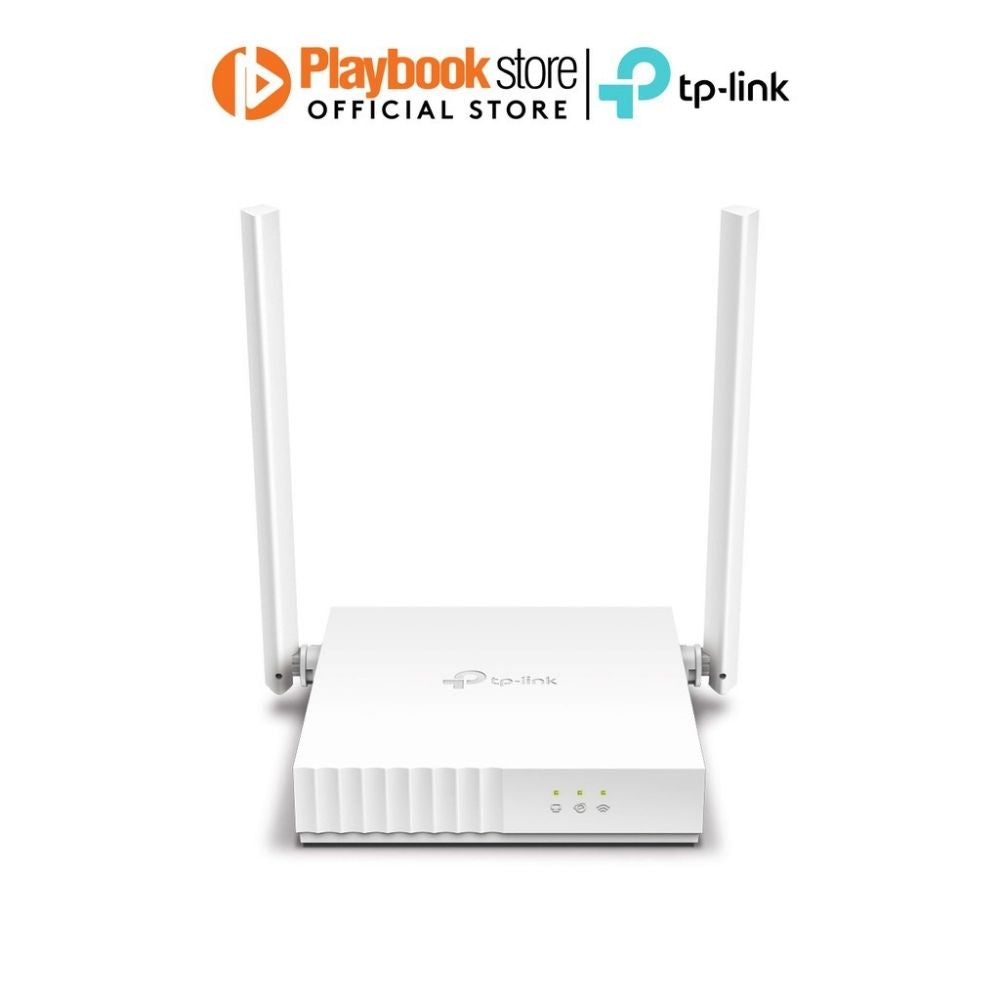

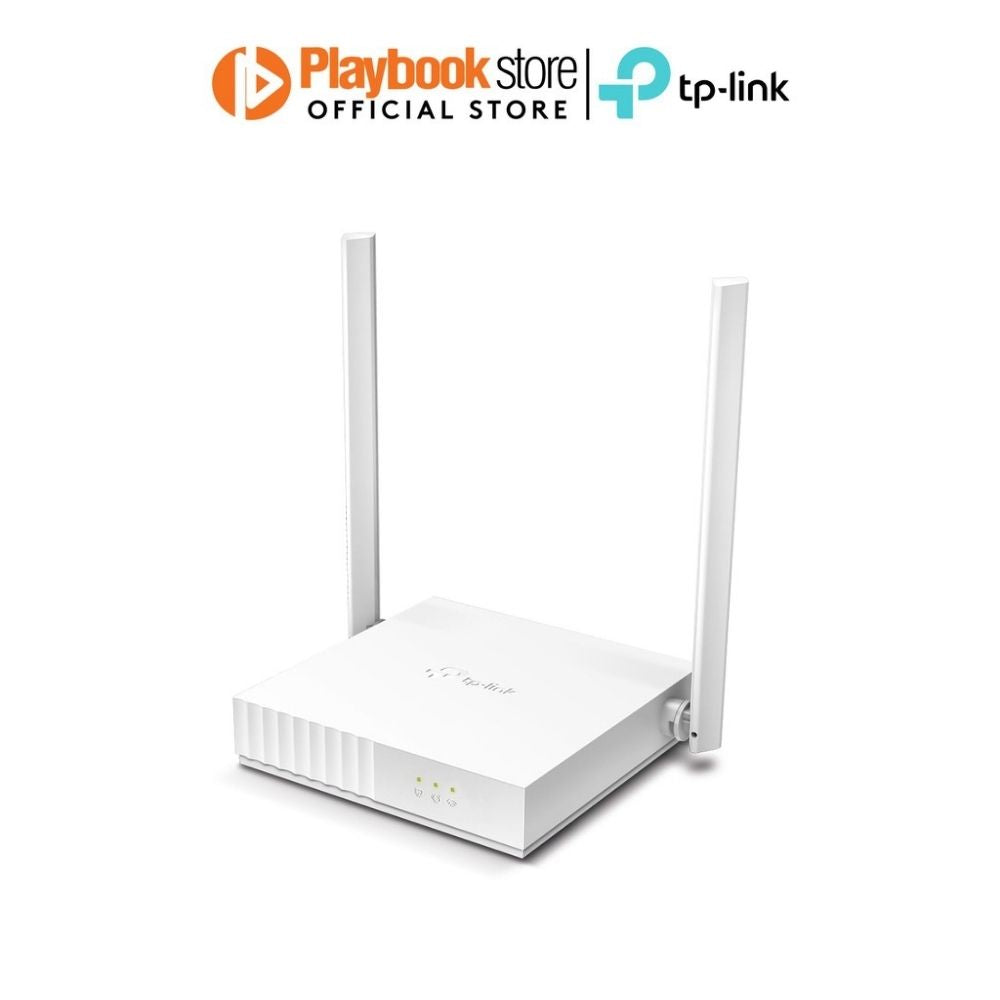

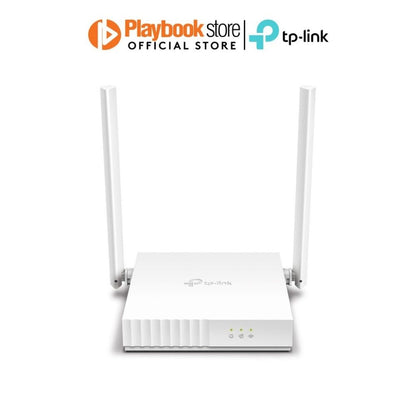

• Wi-Fi Router TL-WR820N
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
𝗪𝗔𝗥𝗥𝗔𝗡𝗧𝗬
• Service: The Playbook Store Offers 1-Year Service Warranty Only.
• Product: 1-Year Manufacturers Warranty (Kindly send us a message on how to claim the Warranty.)
