𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
HARDWARE FEATURES
• Plug Type: US
• Interface: 1 x 10/100M Ethernet Port (RJ45)
• Button: WPS Button, Reset Button
• Power Consumption: 3.6W
• Antenna: 2 x external
WIRELESS FEATURES
• Wireless Standards:
• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency:
• 2.4~2.4835GHz
• Signal Rate:
• 11n: Up to 300Mbps (dynamic)
• 11g: Up to 54Mbps (dynamic)
• 11b: Up to 11Mbps (dynamic)
• Reception Sensitivity:
• 270M: <-68dBm@10% PER
• 130M: <-68dBm@10% PER
• 108M: <-68dBm@10% PER
• 54M: <-68dBm@10% PER
• 11M: <-68dBm@8% PER
• 6M: <-68dBm@10% PER
• 1M: <-68dBm@8% PER
• Transmit Power
• < 20 dBm (EIRP)
• Wireless Modes:
• Range Extender/Access Point
• Wireless Functions:
• Wireless MAC Address Filtering
• Domain Login Function
• Transmit Power Control
• Wireless Security:
• 64/128/152-bit WEP
• WPA-PSK / WPA2-PSK
• Certification:
• CE
• RoHS
• Environment:
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
𝗦𝗬𝗦𝗧𝗘𝗠 𝗥𝗘𝗤𝗨𝗜𝗥𝗘𝗠𝗘𝗡𝗧𝗦
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac® OS, NetWare®, UNIX® or Linux.
𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦

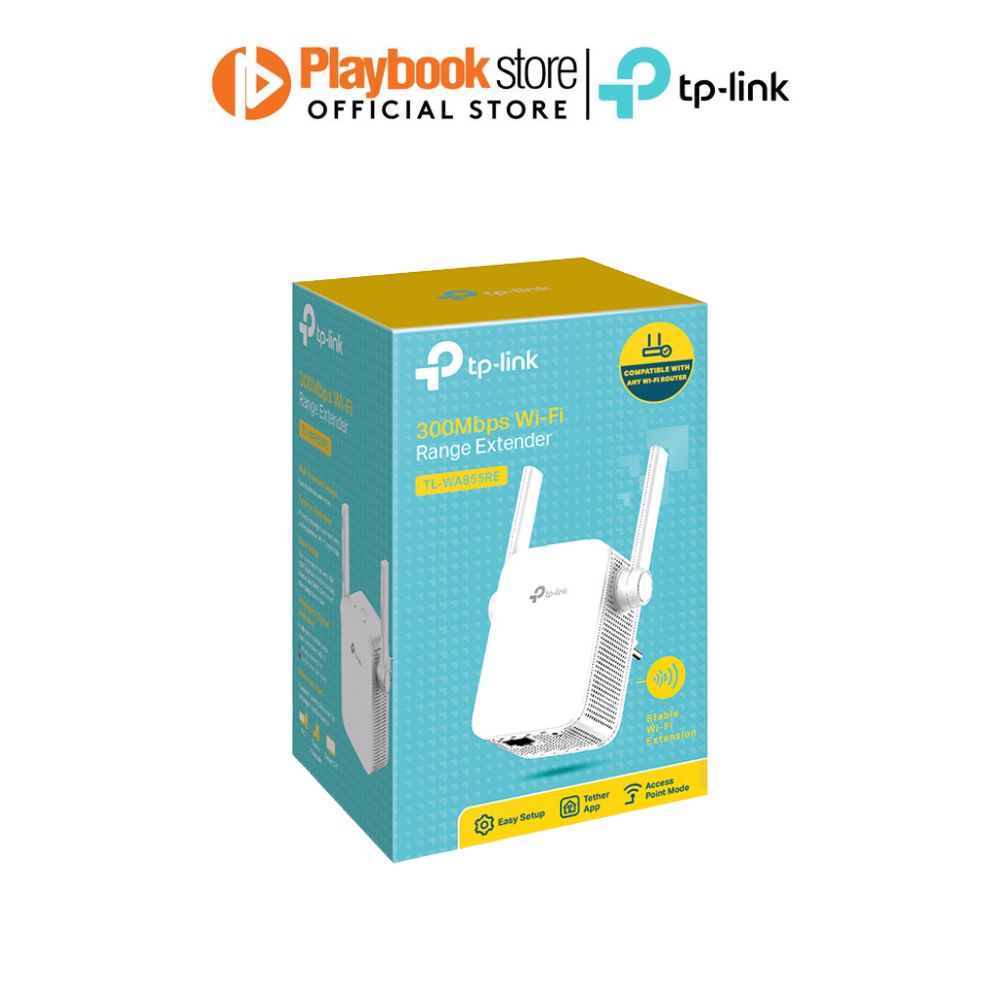

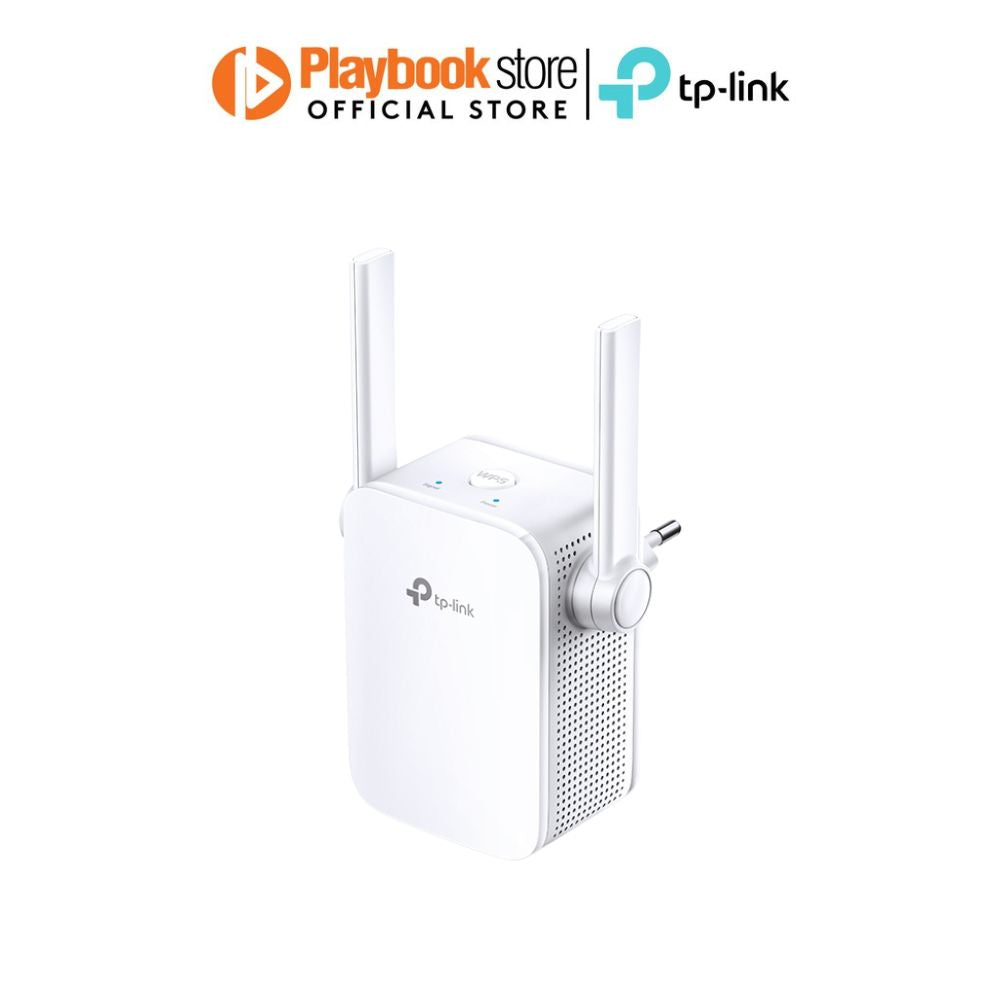

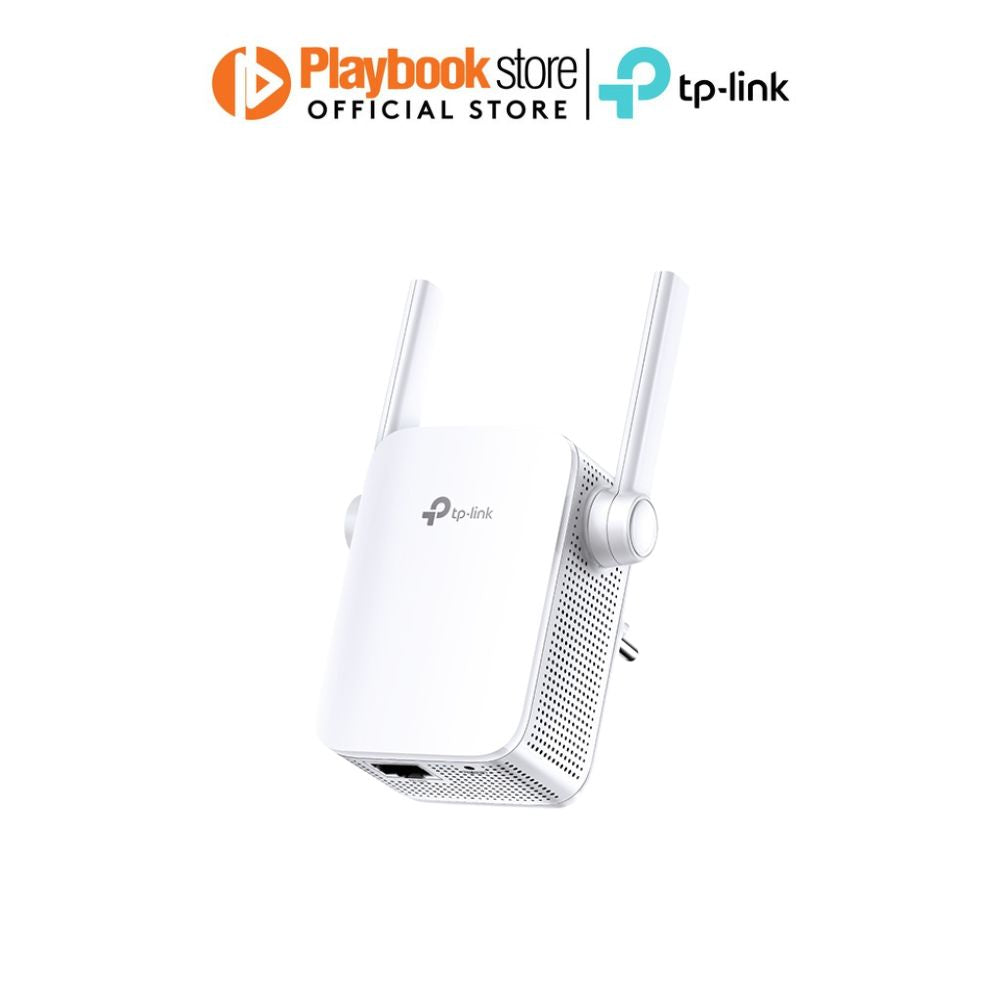

• 300Mbps Wi-Fi Range Extender TL-WA855RE
• Quick Installation Guide
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions( W x D x H ): 3.15 x 3.06 x 3.04 in. (80 x 77.8 x 77.3mm)
𝗪𝗔𝗥𝗥𝗔𝗡𝗧𝗬
• Service: The Playbook Store Offers 1-Year Service Warranty Only.
• Product: 1-Year Manufacturers Warranty (Kindly send us a message on how to claim the Warranty.)
