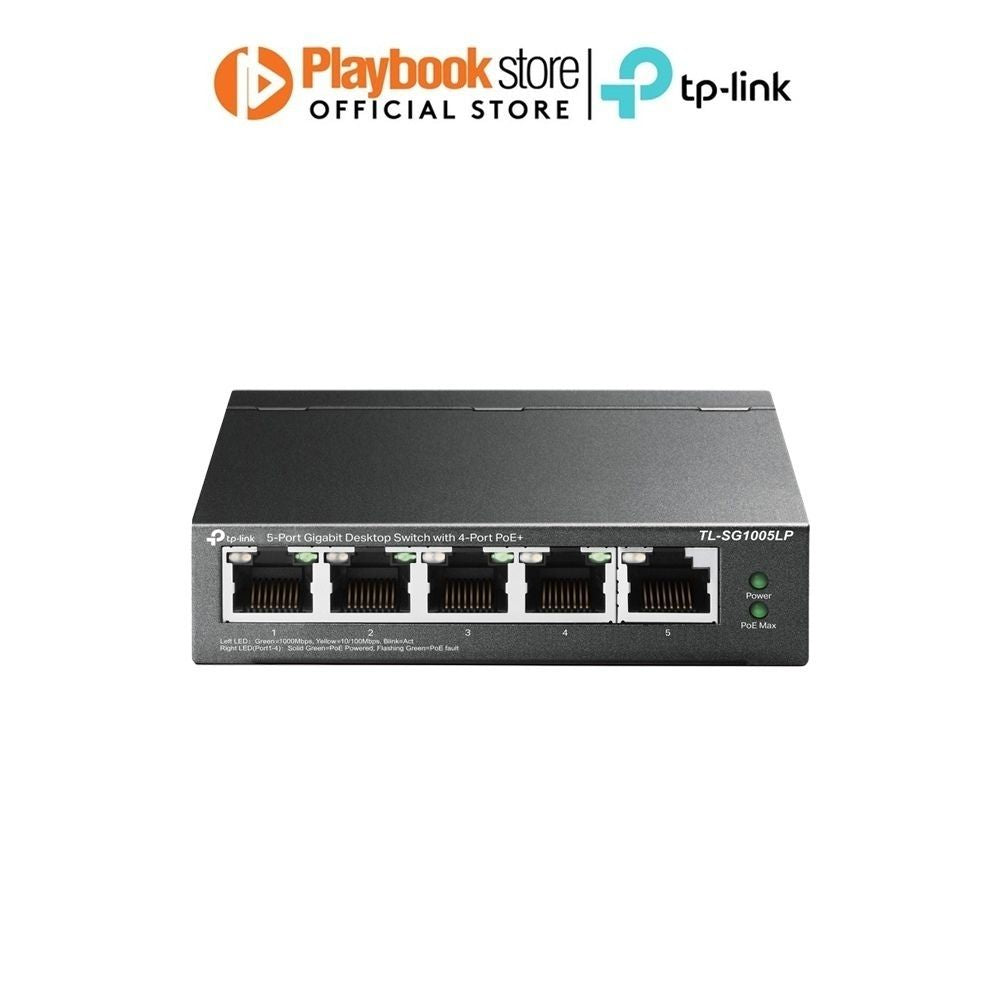

TP-Link TL-SG1005LP 5-Port 10/100/1000Mbps Gigabit Desktop Switch With 4-Port PoE+ Network

𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!

𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
• Interface:
• 5× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
• Network Media:
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
• Packet Forwarding Rate: 7.44 Mpps

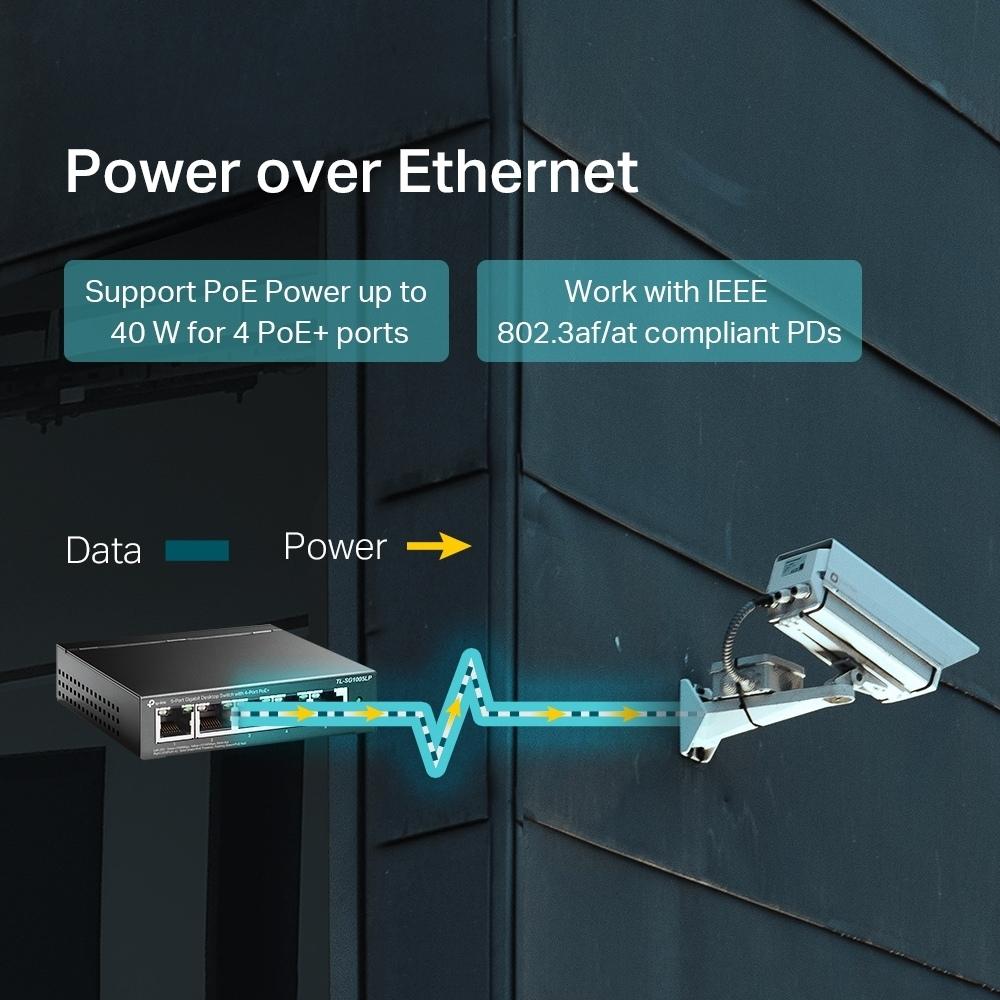

• PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 40 W
• Mac Address Table: 2K
• Jumbo Frame: 16 KB
• Switching Capacity: 10 Gbps
• Max Power Consumption
• 4.12 W (220/50 Hz. no PD connected)
• 47.5 W (220/50 Hz. with 40 W PD connected)
• Max Heat Dissipation:
• 14.05 BTU/h (no PD connected)
• 161.98 BTU/h (with 40 W PD connected)

𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions: 3.9×3.9×1.0 in (99.8×98×25 mm)
