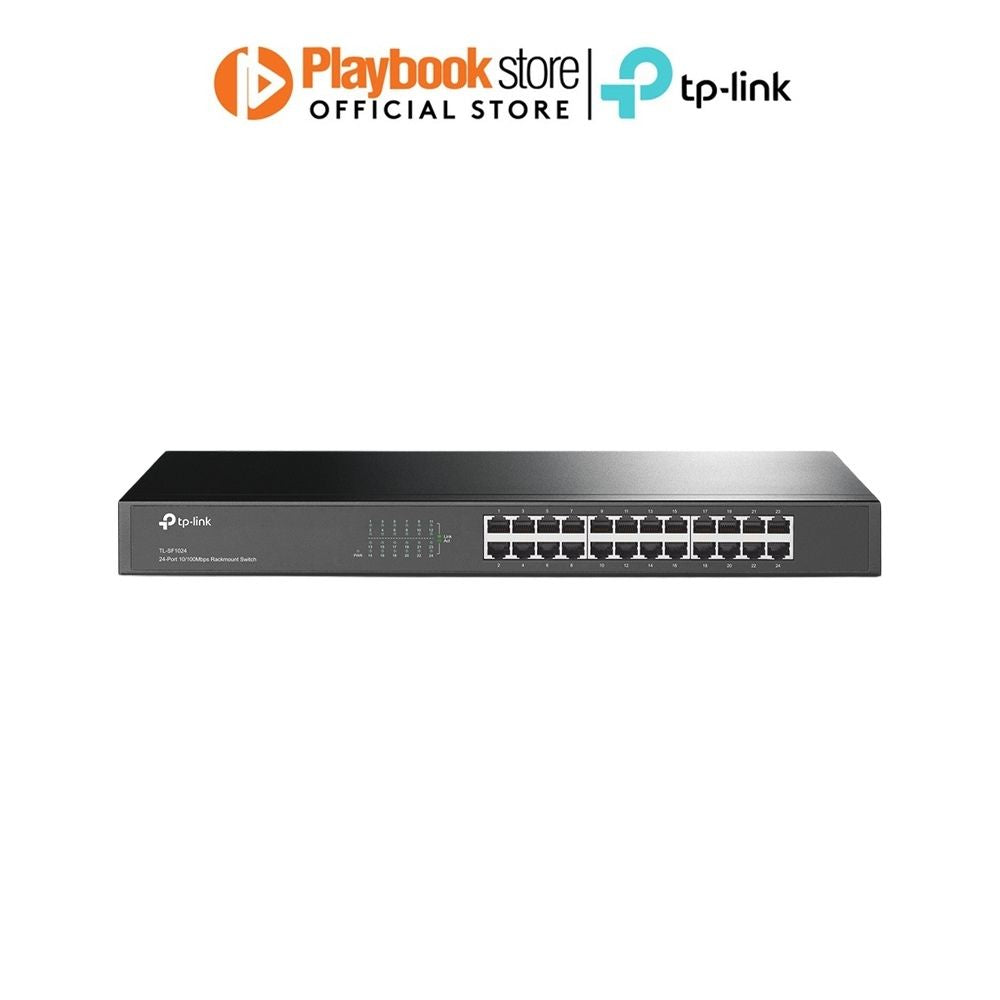

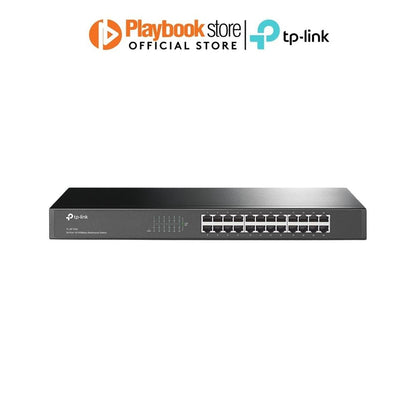

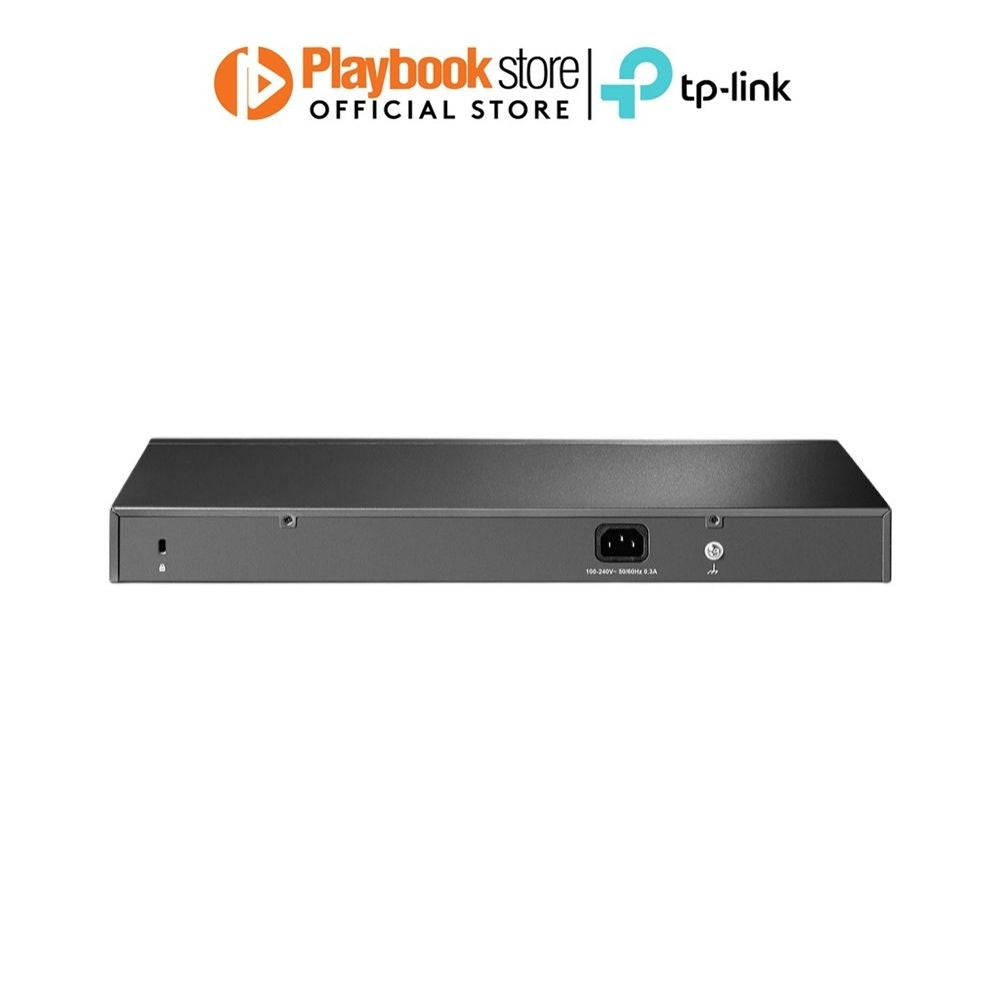

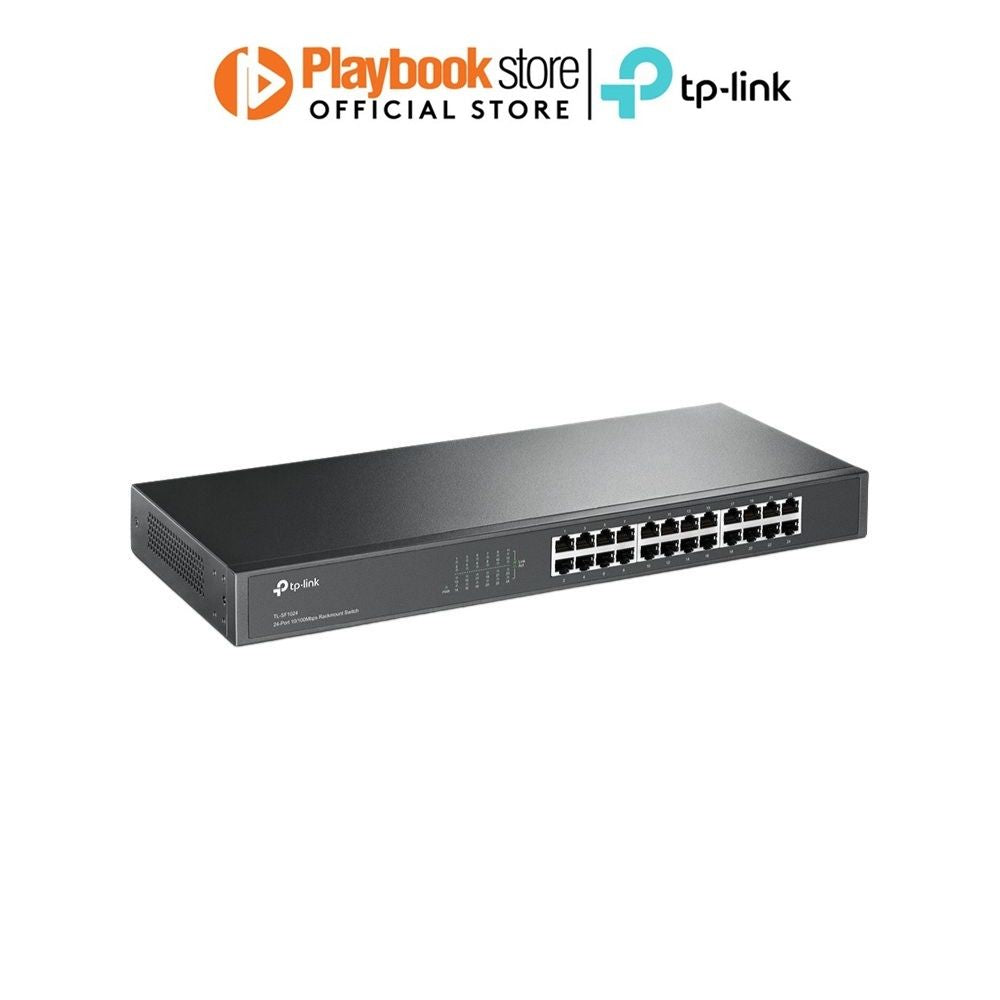

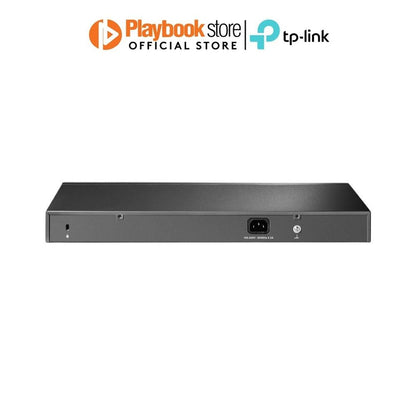

TP-Link TL-SF1024 24-Port 10/100Mbps Rackmount Switch Network Hub

𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!

𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Interface: 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity: Fanless
• Physical Security Lock: Yes
• Power Supply: 100-240VAC, 50/60Hz
• Power Consumption: Maximum: 3.2W
• Mounting: Rack Mountable
• Max Power Consumption: 3.19W(220V/50Hz)
• Max Heat Dissipation: 10.88BTU/h

PERFORMANCE
• Switching Capacity: 4.8Gbps
• Packet Forwarding Rate: 3.57Mpps
• MAC Address Table: 8
• Buffer Memory: 2MB
• Advanced Functions
• Green Technology
• 802.3X Flow Control
• Green Technology: Innovative energy-efficient technology saves power up to 75%
• Transfer Method: Store-and-Forward

• Environment
• Operating Temperature: 0℃~40℃ (32℉~104℉);
• Storage Temperature: -40℃~70℃ (-40℉~158℉);
• Operating Humidity: 10%~90% non-condensing;
• Storage Humidity: 5%~90% non-condensing

𝗦𝗬𝗦𝗧𝗘𝗠 𝗥𝗘𝗤𝗨𝗜𝗥𝗘𝗠𝗘𝗡𝗧𝗦
• Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.

𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions ( W x D x H ): 17.3*7.1*1.7 in. (440*180*44 mm)

𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦
• 24-Port 10/100Mbps Rackmount Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
