𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
𝗛𝗔𝗥𝗗𝗪𝗔𝗥𝗘 𝗙𝗘𝗔𝗧𝗨𝗥𝗘𝗦

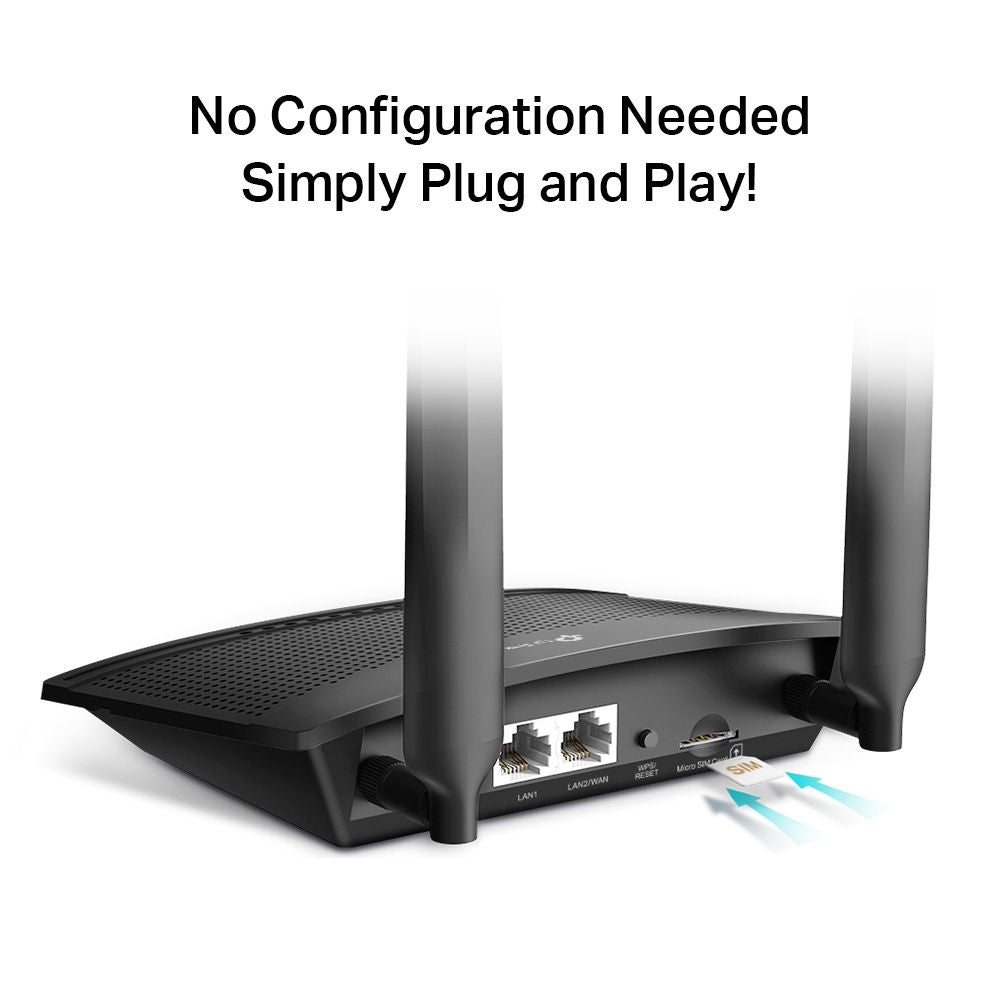

• Interface: 1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
• 1 Micro SIM Card Slot
• Button: WPS/Reset Button
• External Power Supply(EU): 9V/0.85A
• Antenna: 2 Detachable External 4G LTE Antennas
𝗪𝗜𝗥𝗘𝗟𝗘𝗦𝗦 𝗙𝗘𝗔𝗧𝗨𝗥𝗘𝗦
• Wireless Standards: IEEE 802.11b/g/n
• Frequency: 2.4 GHz
• Signal Rate: 300 Mbps
• Reception Sensitivity: 11g 54M: -74 dBm
• 11n HT20: -71 dBm
• 11n HT40: -68 dBm
• Transmit Power: < 20 dBm (2.4 GHz)
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
• WAN Failover: Yes
• Wireless Security:64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Network Type: 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)
• TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
• 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
• Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
• NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
• Java-enabled browser
• Micro SIM Card
𝗦𝗢𝗙𝗧𝗪𝗔𝗥𝗘 𝗙𝗘𝗔𝗧𝗨𝗥𝗘𝗦
• Security: IPv4 SPI Firewall, IP and MAC Address Binding
• Operating Modes: 3G/4G Router, Wireless Router
• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• Management: Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP
• Protocols: IPv4, IPv6
• Guest Network: 2.4 GHz Guest Network
• Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions: 6.06×4.49×1.42 in ( 154×114×36 mm)
𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦

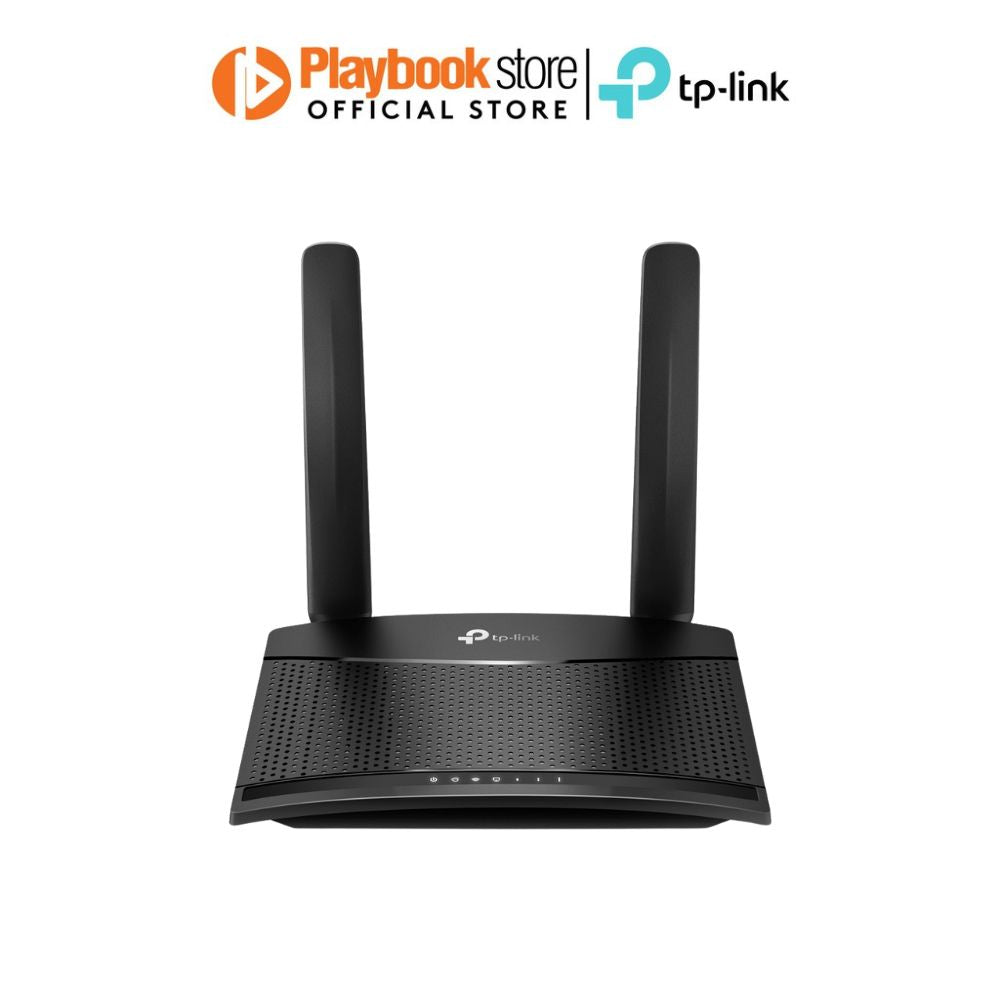

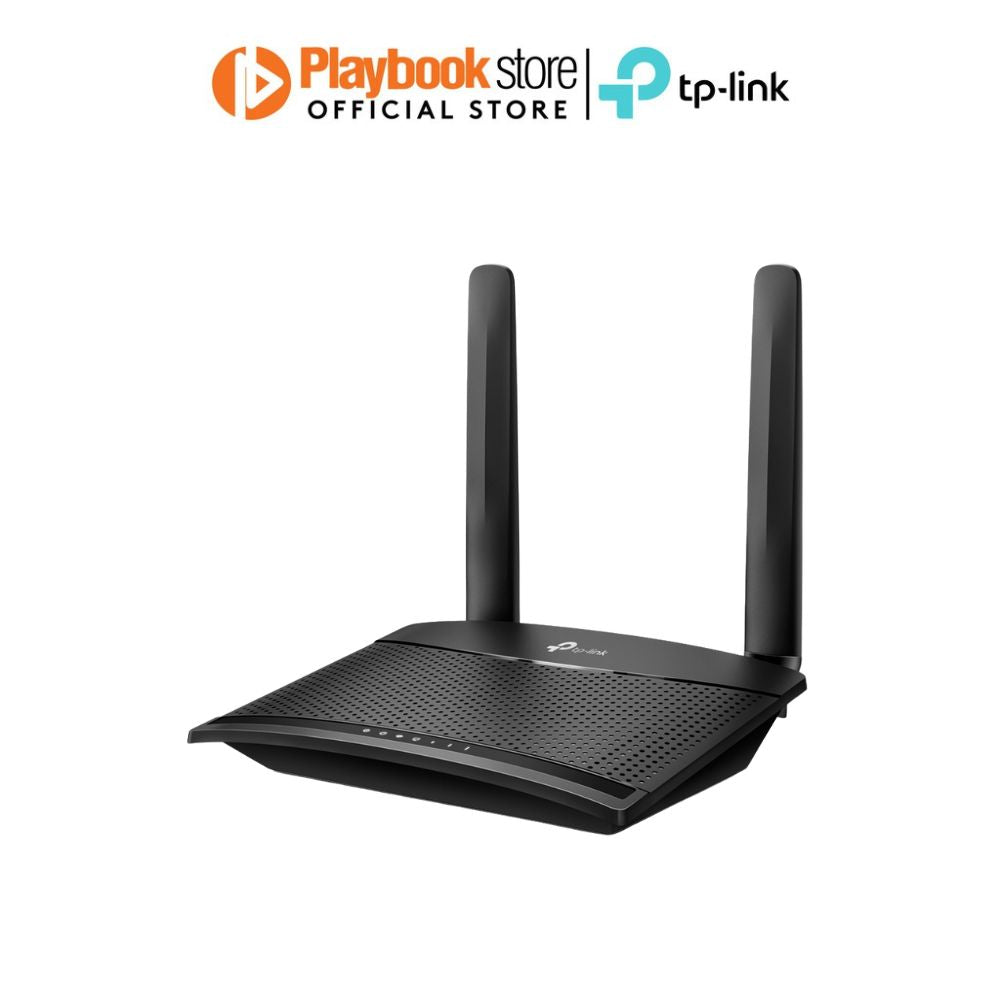

• 300 Mbps Wireless N 4G LTE TL-MR100
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
𝗪𝗔𝗥𝗥𝗔𝗡𝗧𝗬
• Service: The Playbook Store Offers 1-Year Service Warranty Only.
• Product: 1-Year Manufacturers Warranty (Kindly send us a message on how to claim the Warranty.)
