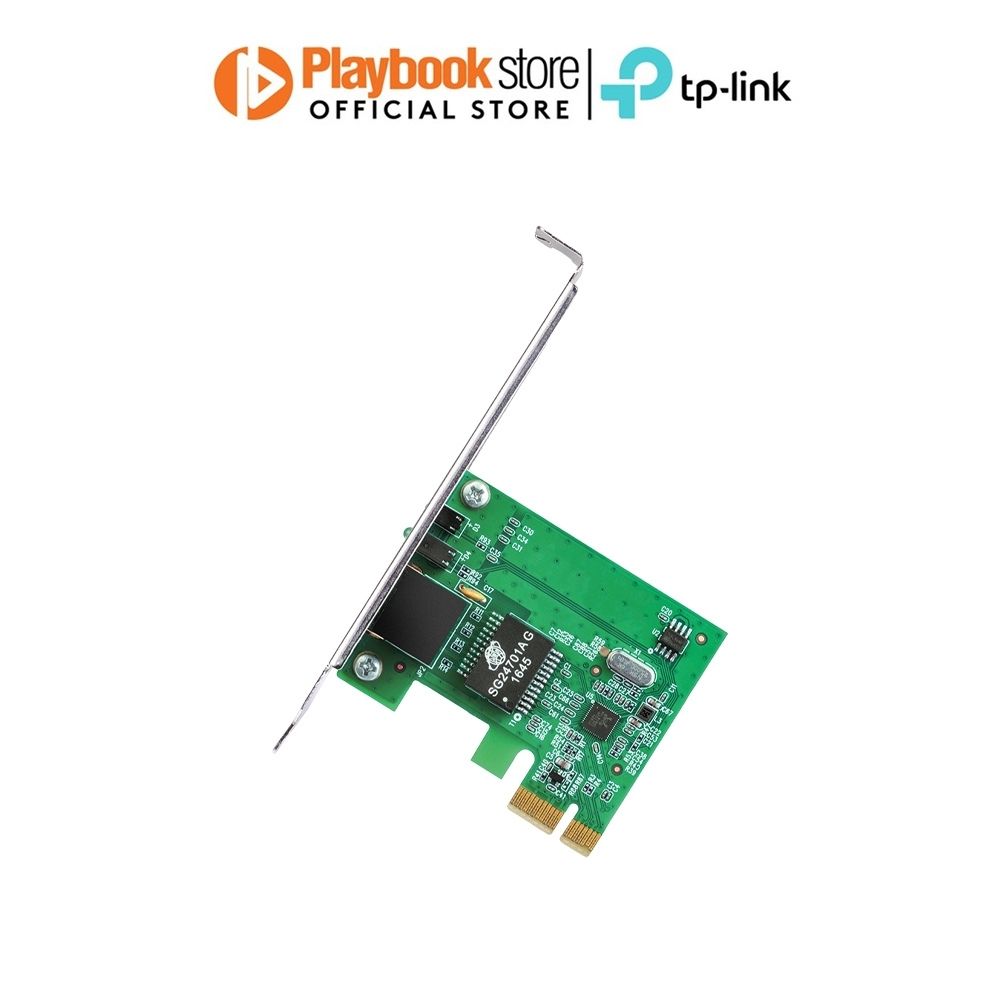

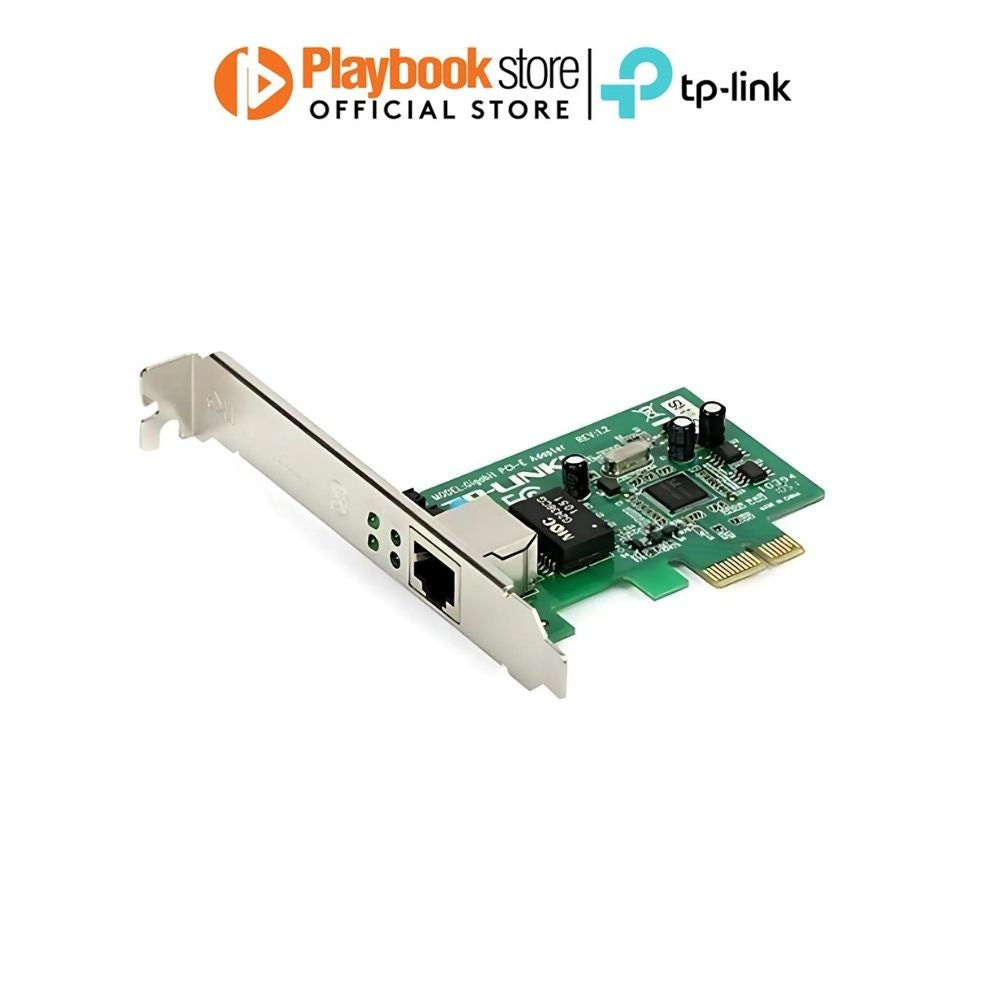

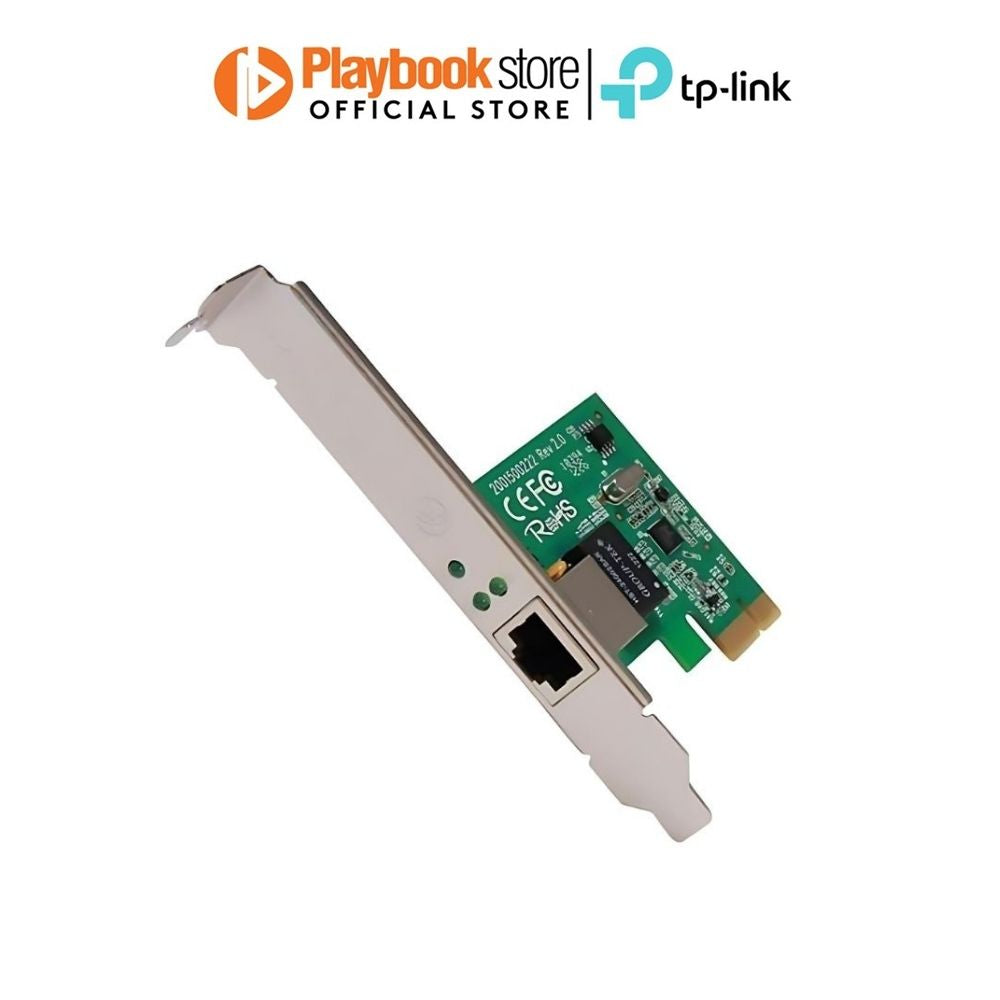

TP-Link TG-3468 Gigabit PCI Express Network Adapter

𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!

𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
• Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
• Interface: 32-bit PCI Express, 1 10/100/1000Mbps RJ45 port
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000Base-T: UTP category 5, 5e cable (maximum 100m)
• LED: Status
• Wireless Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
• Data Rates
• 10/100/1000Mbps for Half-Duplex mode
• 20/200/2000Mbps for Full-Duplex mode
• LED Indicator: 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
• Flow Control: IEEE 802.3x Flow Control (Full-Duplex)

OTHERS
• Environment
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

𝗦𝗬𝗦𝗧𝗘𝗠 𝗥𝗘𝗤𝗨𝗜𝗥𝗘𝗠𝗘𝗡𝗧𝗦

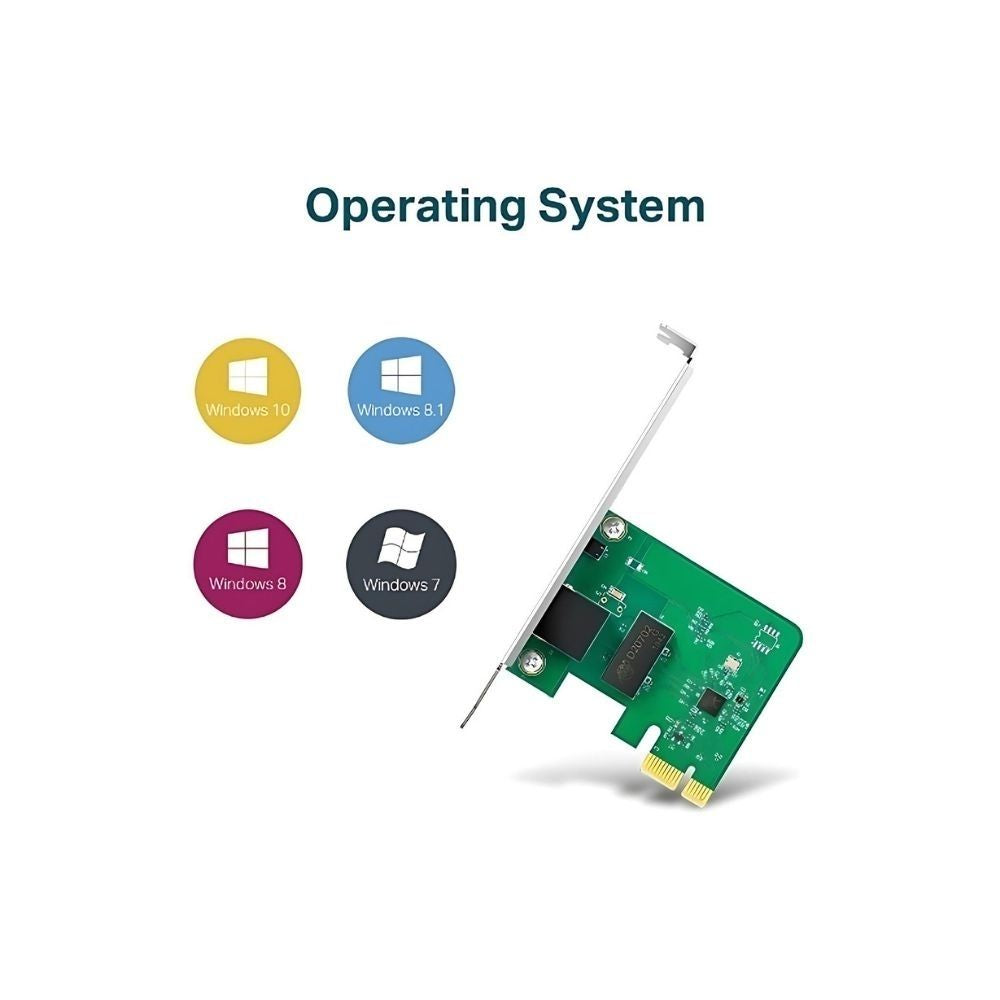

• Windows 10/8.1/8/7/XP/Vista (32/64bits)

𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions: 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)

𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦
• Gigabit PCI Express Network Adapter TG-3468
• Resource CD
• Quick Installation Guide
