𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
CAMERA
• Image Sensor: 1/3” Progressive Scan CMOS Starlight Sensor
• Lens
• Focal Length: 3.2 mm
• Aperture: F1.6
• Field of View: 112° (Diagonal), 95°(Horizontal), 53°(Vertical)
• Motion Range
• Pan Mechanical Range: 340° (360° Pan Coverage)
• Tilt Mechanical Range: 60° (130° Tilt Coverage)
• Night Vision:
• 850 nm IR LED (98 ft / 29.9 m)
• Full-Color Night Vision
• Lighting: 2× Built-in Spotlights
• Interface & Button:
• 1× Ethernet Port
• 1× RESET Button
• 1× MicroSD Card Slot (Up to 512GB)
VIDEO & AUDIO
• Maximum Resolution: 2K QHD 4MP (2560 × 1440 px)
• Frame Rate: 15/20/25/30 fps (Default 15 fps)
• Digital Zoom: 12x
• Video Compression: H.264
• Live View: Yes
• Image Enhancement:
• 3DNR
• WDR
• Audio Input & Output: Built-in Microphone and Speaker
• Audio Communication: Two-Way Audio with Noise Cancellation
• Siren Volume: 93 dB (Level measured at 4-inch/10-cm distance)
STORAGE
• Local Storage: MicroSD Card Slot on Camera (Up to 512 GB)
• Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
DETECTION and NOTIFICATIONS
• AI Detection: Motion Detection
• Person Detection
• Pet Detection
• Vehicle Detection
• Line-Crossing Detection
• Tamper Detection
• Activity Zones: Yes
• Output Notification :
• System Notification
• System Notification with Snapshot (Tapo Care Services)
NETWORK
• Network Connectivity: Connect via Wi-Fi or Ethernet
• Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
• Ethernet Port: 1× 10/100 Mbps RJ45 Port on Camera
• RTSP: Yes
• ONVIF: Yes
SECURITY
• On-Device Machine Learning
• 128-bit AES Encryption with SSL/TLS
• WPA/WPA2-PSK
POWER
• Power Source: 9V DC Power Adapter
• Input Voltage: 100-240 V, 50/60 Hz
• Output Voltage: 9 V, 0.85 A (DC Power)
GENERAL
• Smart Integration: Google Assistant, Amazon Alexa
• Weather Resistance: IP66
• System Requirements: Tapo App: iOS 9.0 or higher, Android 4.4 or higher
• Mounting Options:
• Ceiling-Mounted
• Wall-Mounted
• Pole-Mounted (Pole-Mounting loops required but not included)
• Certifications: CE, FCC, RoHS, RCM
𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦

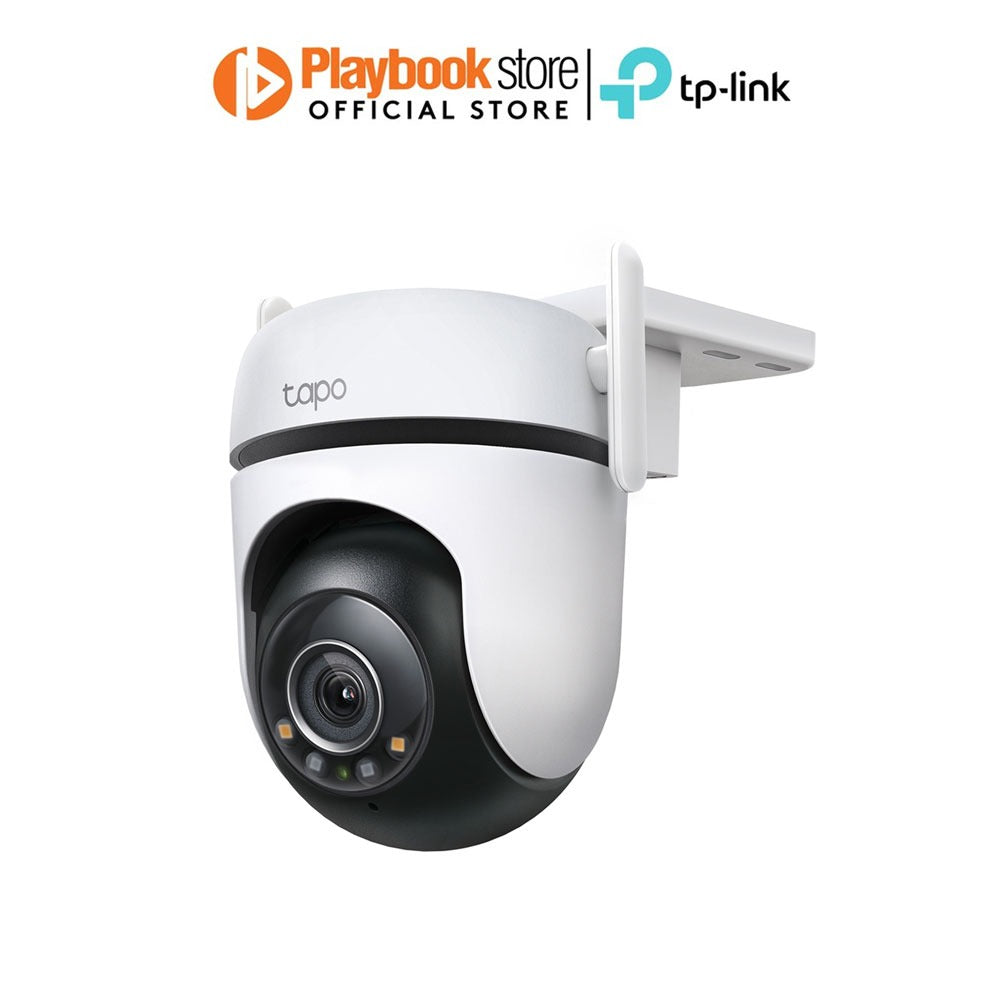

• Tapo C520WS Camera
• Power Adapter
• Mounting Anchors
• Mounting Screws
• Bracket Screws
• Mounting Template
• Mounting Bracket
• Waterproof Seal
• Waterproof Cable Attachments
• Quick Start Guide
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions: 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)
𝗪𝗔𝗥𝗥𝗔𝗡𝗧𝗬
• Service: The Playbook Store Offers 1-Year Service Warranty Only.
• Product: 1-Year Manufacturers Warranty (Kindly send us a message on how to claim the Warranty.)
