𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
WIRELESS
• Working Modes: Range Extender/Access Point
HARDWARE FEATURES
• Plug Type: EU, UK, US, AU, KR, JP
• Ports: 1 Gigabit Ethernet Port
• Button: WPS Button, Reset Button, LED Button, Power Button
• Input Power: 100-240V~50/60Hz
• Power Consumption: 10W (max power consumption）
• Antenna: 3 External Antennas
WIRELESS FEATURES
• Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency: 2.4GHz and 5GHz
• Signal Rate: 600Mpbs at 2.4GHz, 1300Mbps at 5GHz
• Reception Sensitivity
• 5GHz：
• 11a 6Mbps:-93dBm
• 11a 54Mbps: -76dBm
• 11ac HT20 mcs8: -68dBm
• 11ac HT40 mcs9: -64dBm
• 11ac HT80 mcs9: -61dBm
• 2.4GHz:
• 11g 54Mbps: -77dBm
• 11n HT20 mcs7: -73dBm
• 11n HT40 mcs7: -70dBm
• Wireless Functions: Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage
• Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK
• Transmission Power: 2.4G<20dBm, 5G<23dBm
OTHERS
• Certification: CE, FCC, RoHS
𝗦𝗬𝗦𝗧𝗘𝗠 𝗥𝗘𝗤𝗨𝗜𝗥𝗘𝗠𝗘𝗡𝗧𝗦
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista
• Windows 7, 8, 10
• Mac® OS
• NetWare®
• UNIX®
• Linux.
• Environment: Operating Temperature: 0°C~30°C (32°F~86°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions ( W x D x H ): 6.4 x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm)
• Box Dimensions (W X D X H): 7.9 x 4.9 x 3.4in. (202x 125 x 86mm)
𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦

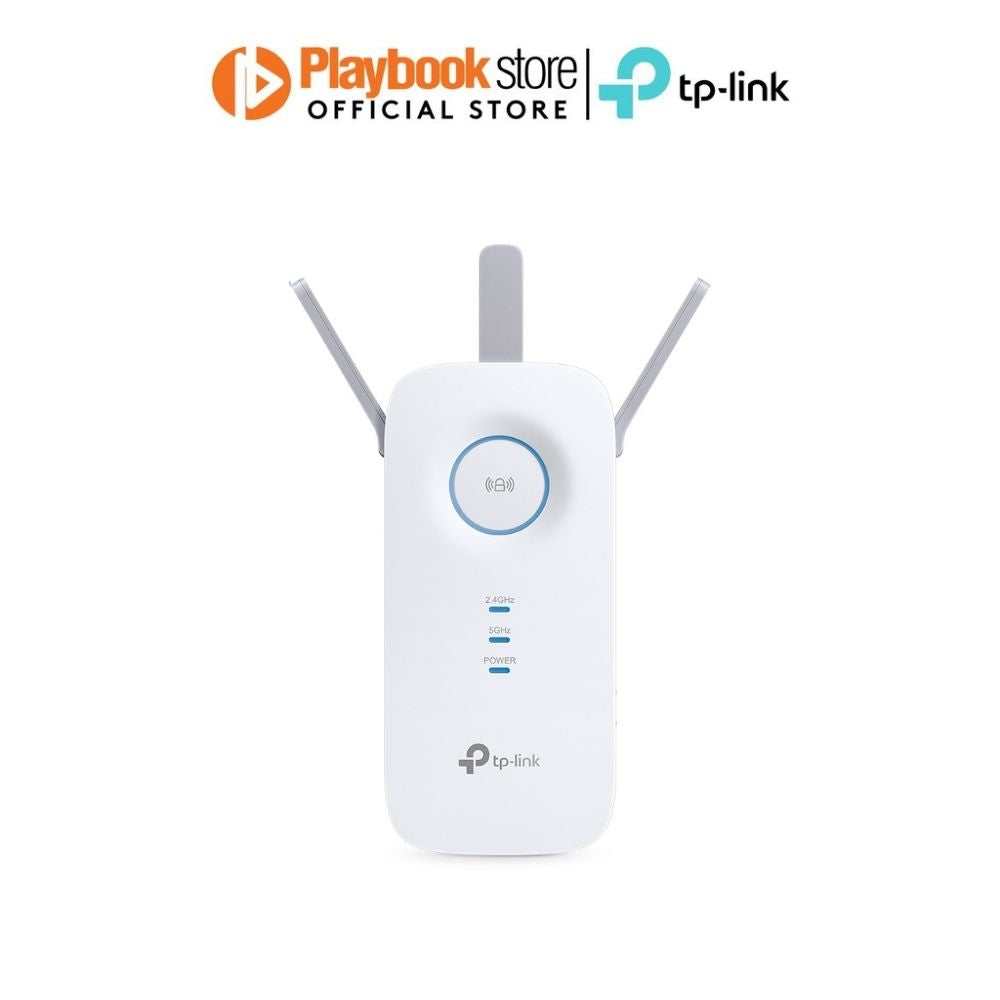

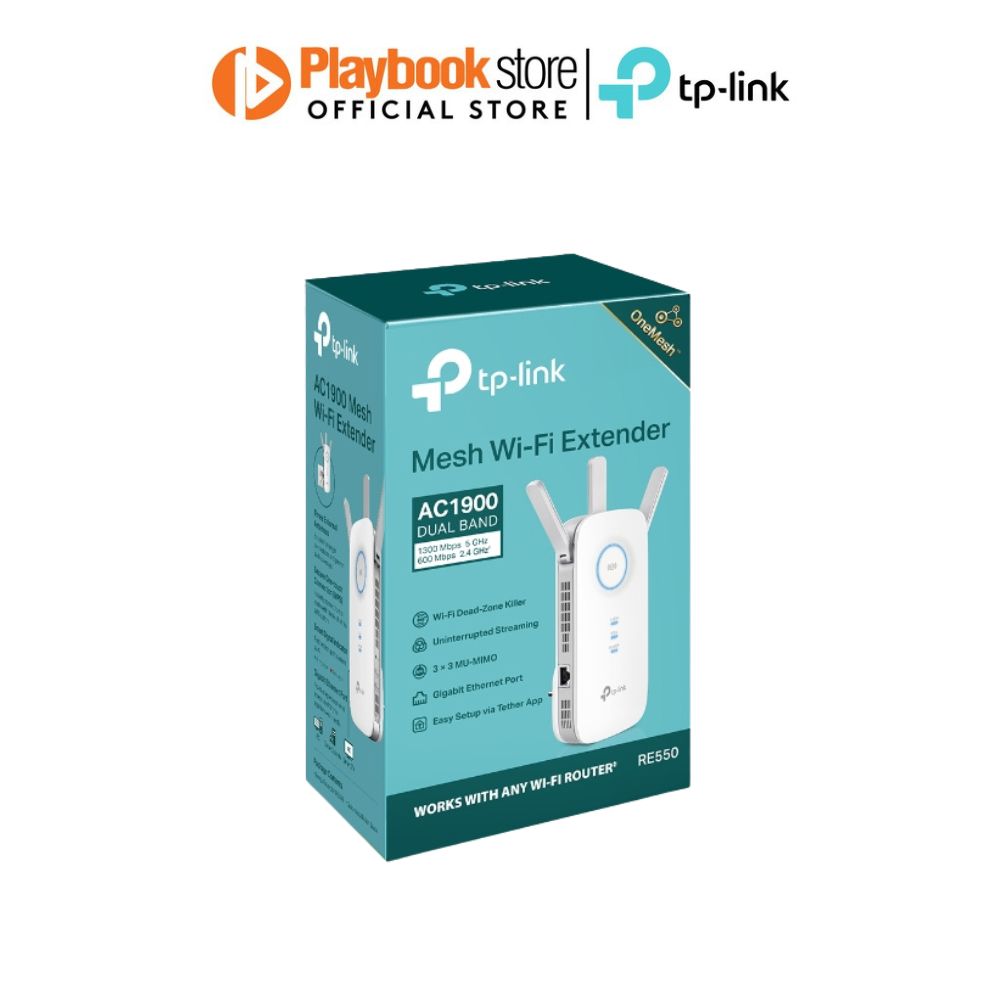

• AC1900 Wi-Fi Range Extender RE550
• Quick Installation Guide
𝗪𝗔𝗥𝗥𝗔𝗡𝗧𝗬
• Service: The Playbook Store Offers 1-Year Service Warranty Only.
• Product: 1-Year Manufacturers Warranty (Kindly send us a message on how to claim the Warranty.)
