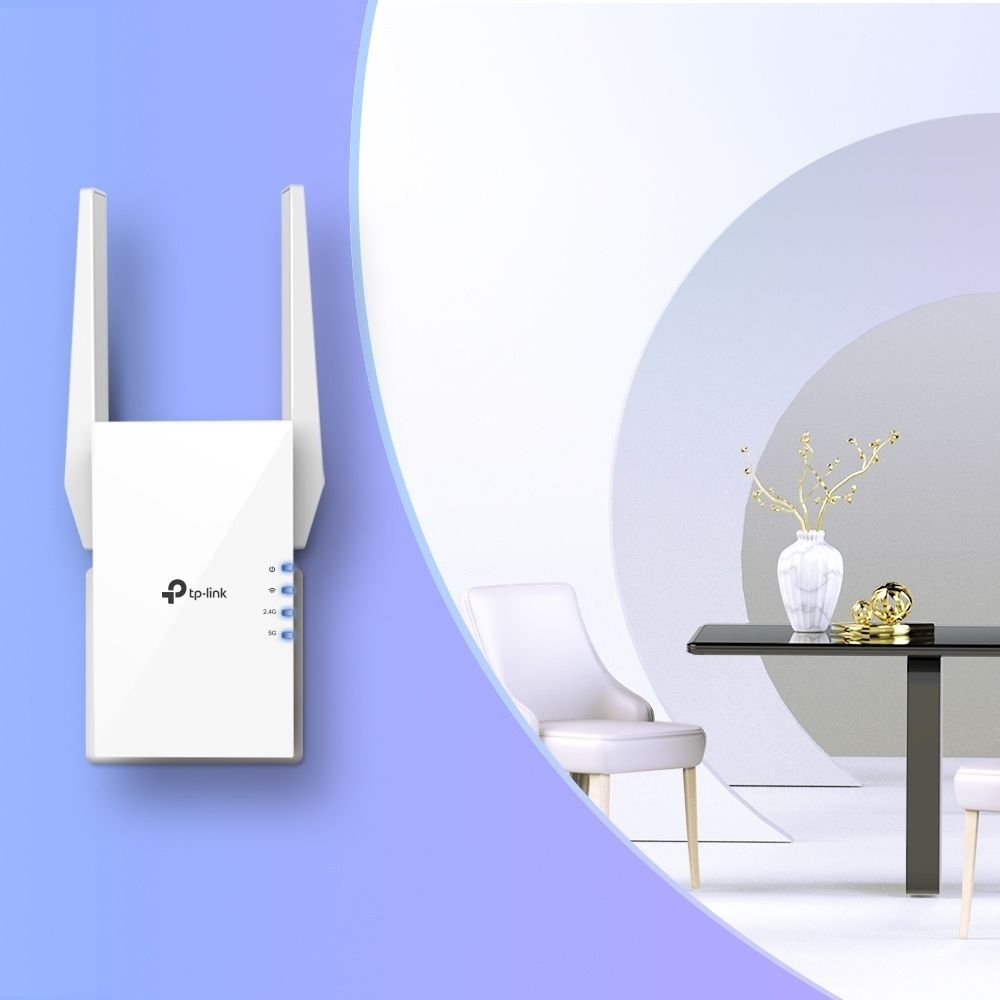

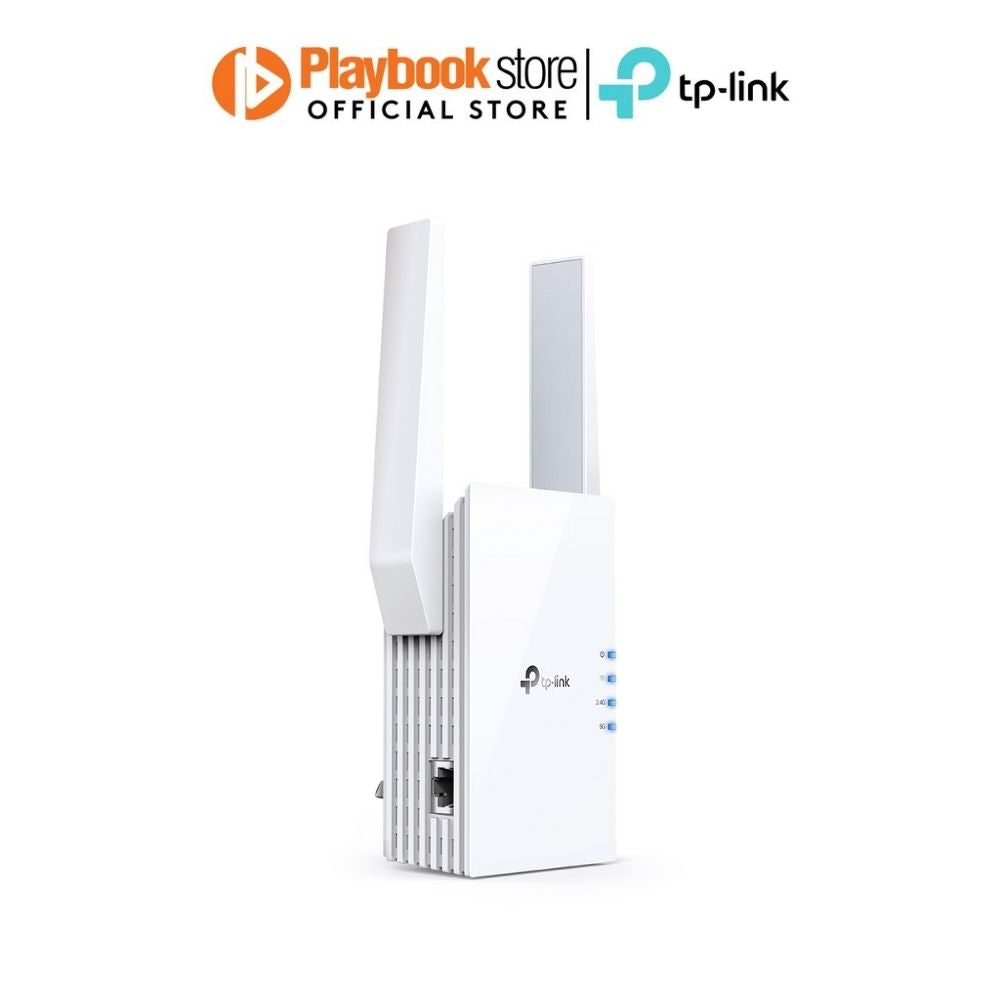

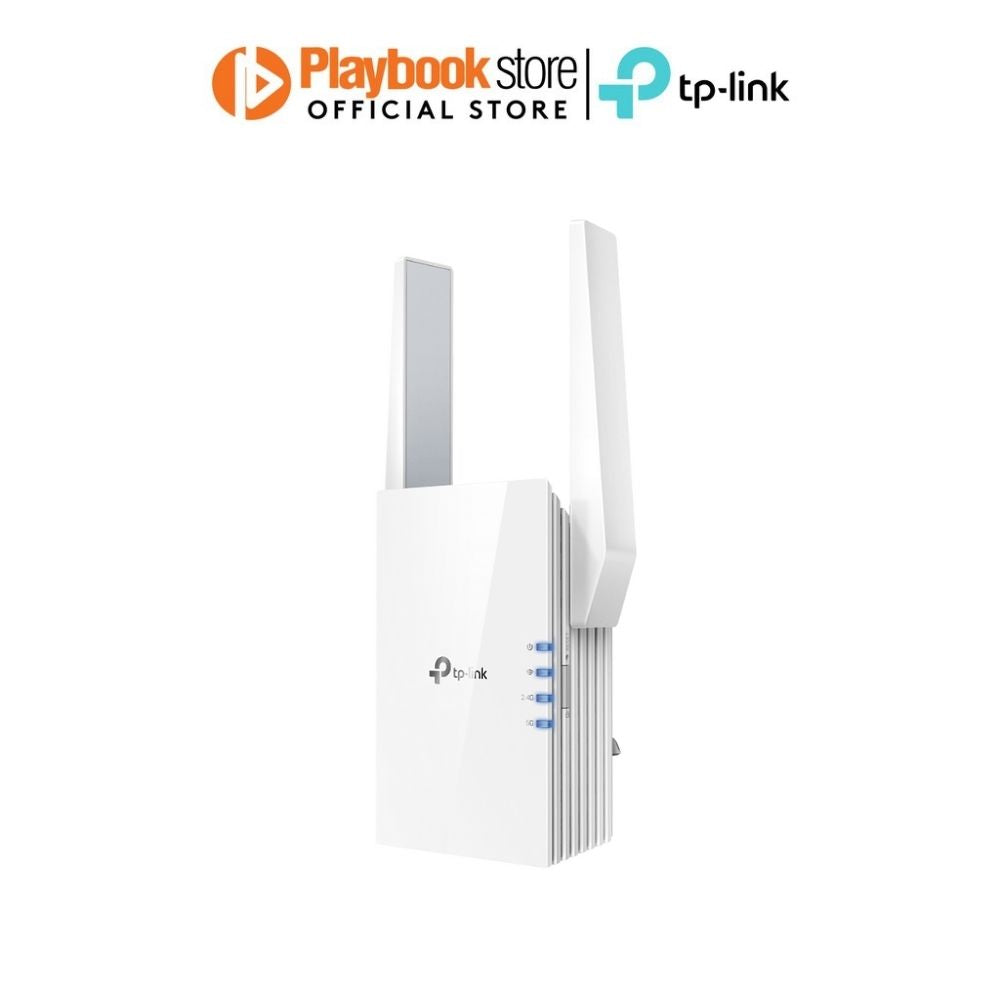

TP-Link RE505X AX1500 Wi-Fi 6 Dual Band Range Extender

𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!

𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
HARDWARE FEATURES
• Ports: 1 Gigabit Ethernet Port
• Button: WPS Button, Reset Button
• Power Consumption: 10W
• Antenna: 2 External Antennas
• Certifications: FCC, RoHS

WIRELESS FEATURES
• Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4GHz and 5GHz

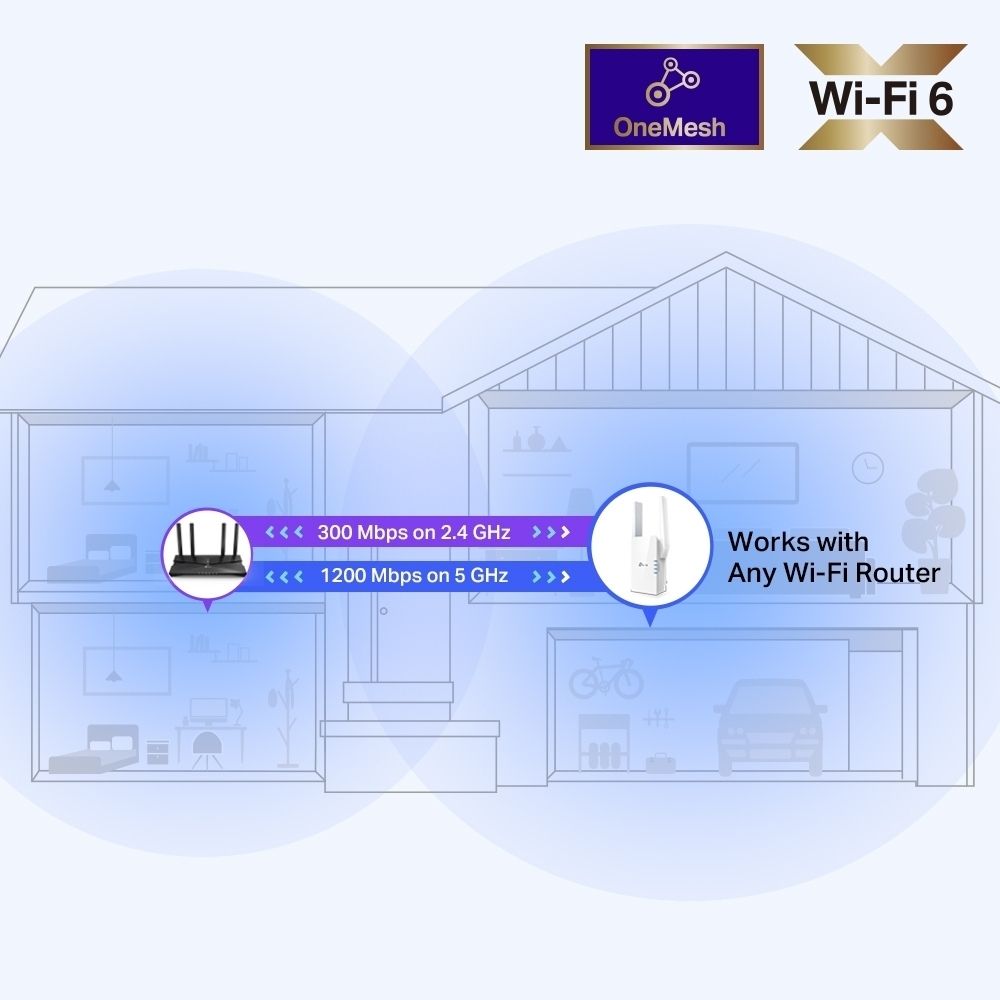

• Signal Rate: 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz
• Reception Sensitivity
• 5GHz
• 11a 6Mbps: -93dBm,
• 11a 54Mbps: -75dBm
• 11ac HT20 MCS0: -92dBm,
• 11ac HT20 MCS8: -70dBm
• 11ac HT40 MCS0: -90dBm,
• 11ac HT40 MCS9: -66dBm
• 11ac HT80 MCS0: -87dBm,
• 11ac HT80 MCS9: -62dBm
• 2.4GHz:
• 11g 54Mbps: -77dBm,
• 11n HT20 MCS7: -75dBm
• 11n HT40 MCS7: -72dBm
• Transmit Power: CE: 2.4GHz ≤20dBm, 5GHz ≤30dBm
• Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
• Wireless Security: 64/128-bit WEP, WPA/WPA-PSK2 encryptions

𝗦𝗬𝗦𝗧𝗘𝗠 𝗥𝗘𝗤𝗨𝗜𝗥𝗘𝗠𝗘𝗡𝗧𝗦
• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions ( W x D x H ): 2.9×1.8×4.9 in. (74.0×46×124.8 mm)

𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦
• Wi-Fi Range Extender RE505X
• Quick Installation Guide
