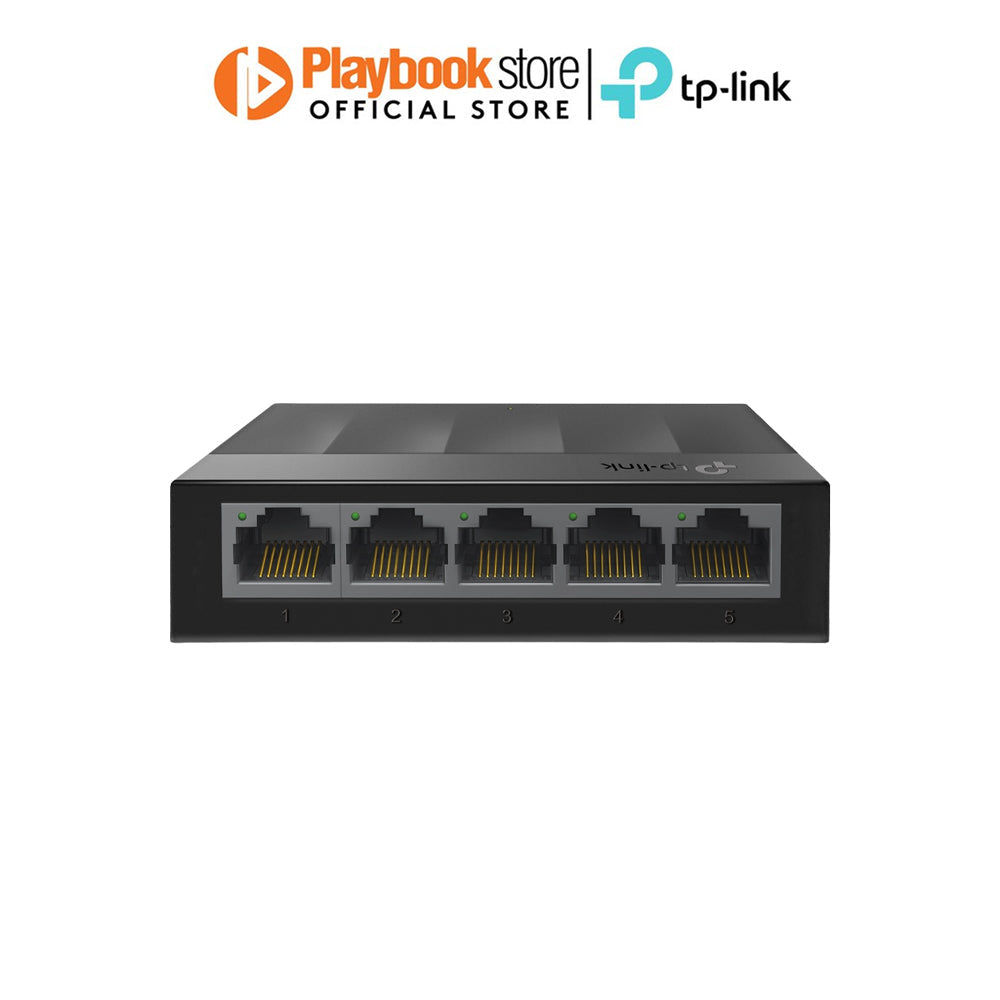

TP-Link LS1005G 5-Port 10/100/1000Mbps Desktop Switch Network Hub

𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!

𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x

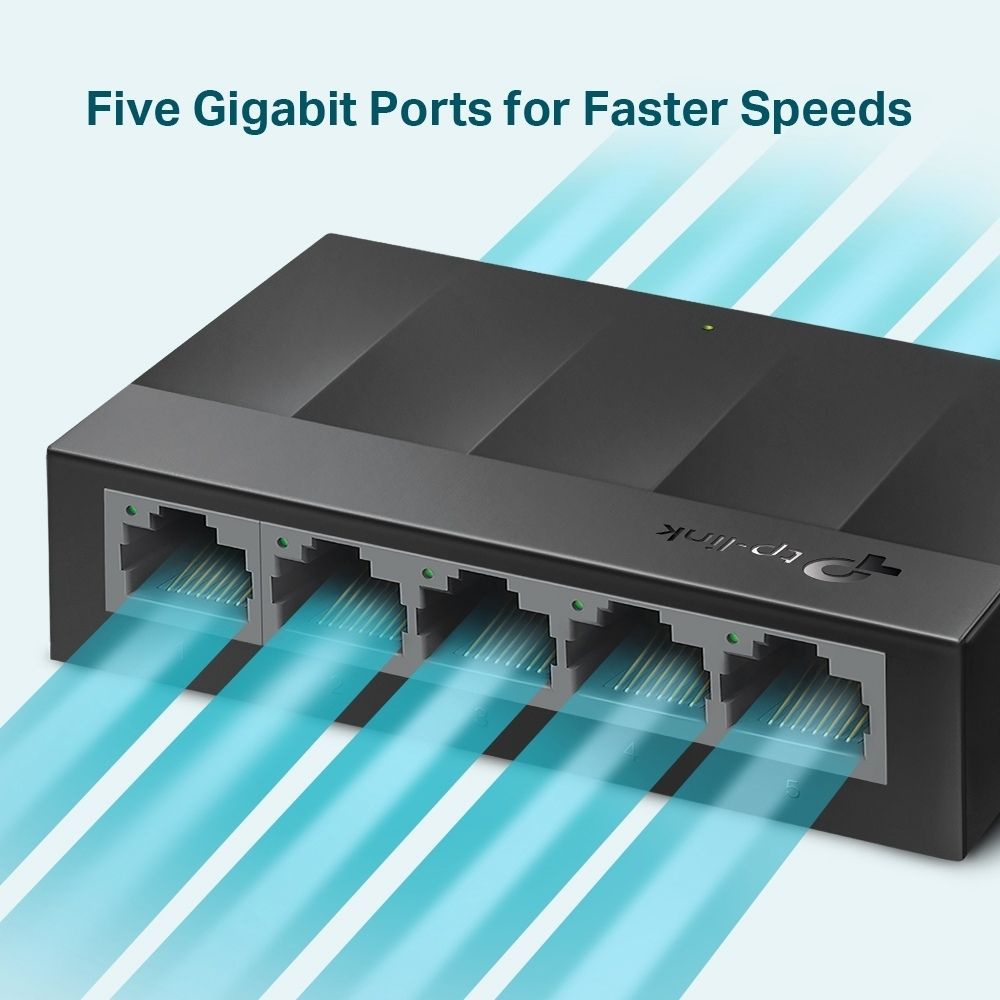

• Interface: 5×10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

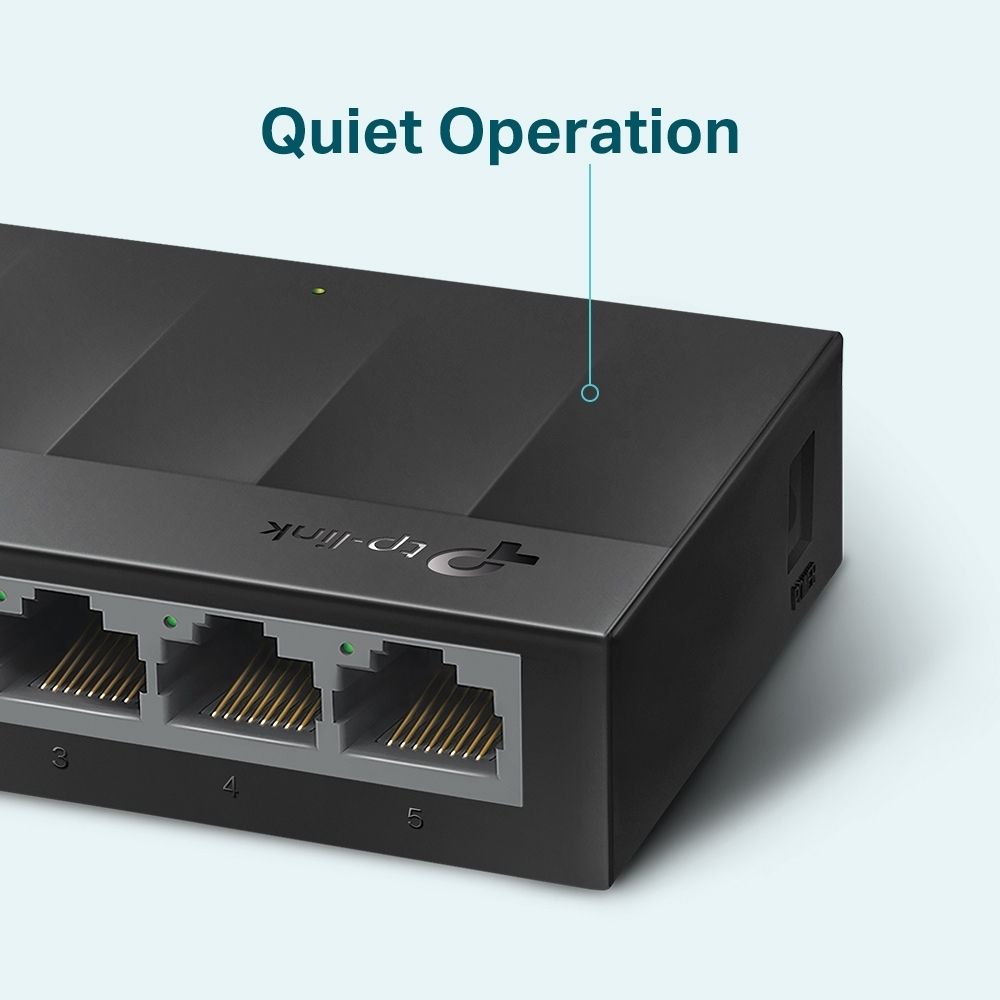

• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 5VDC/0.6A)
• Max Power Consumption: 3.7W
• Max Heat Dissipation: 12.617 BTU/h

PERFORMANCE
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table; 2K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB

SOFTWARE FEATURES
• Advanced Features
• Green Technology
• 802.3X Flow Control
• Back Pressure
• Transfer Method: Store and Forward
• Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5%~90% non-condensing

𝗦𝗬𝗦𝗧𝗘𝗠 𝗥𝗘𝗤𝗨𝗜𝗥𝗘𝗠𝗘𝗡𝗧𝗦
• Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits)

𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions ( W x D x H ): 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)

𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦
• 5-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• Installation Guide
