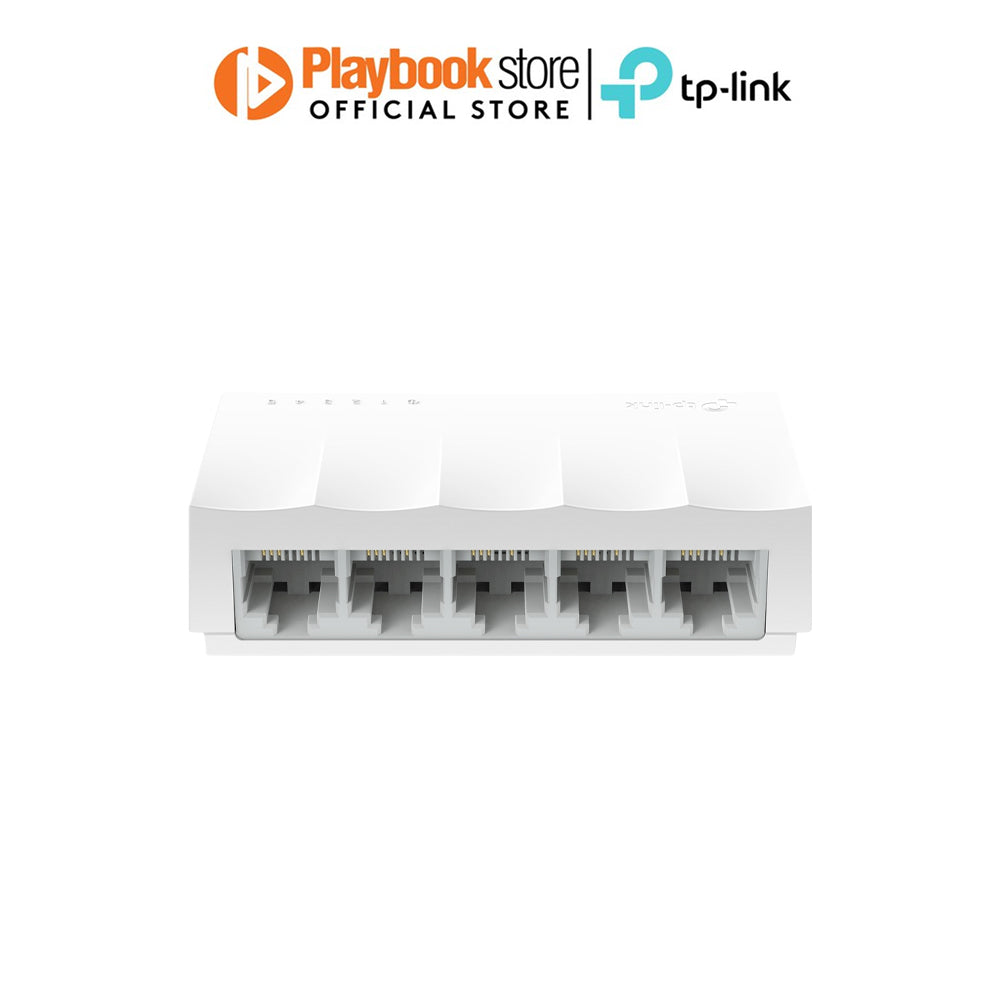

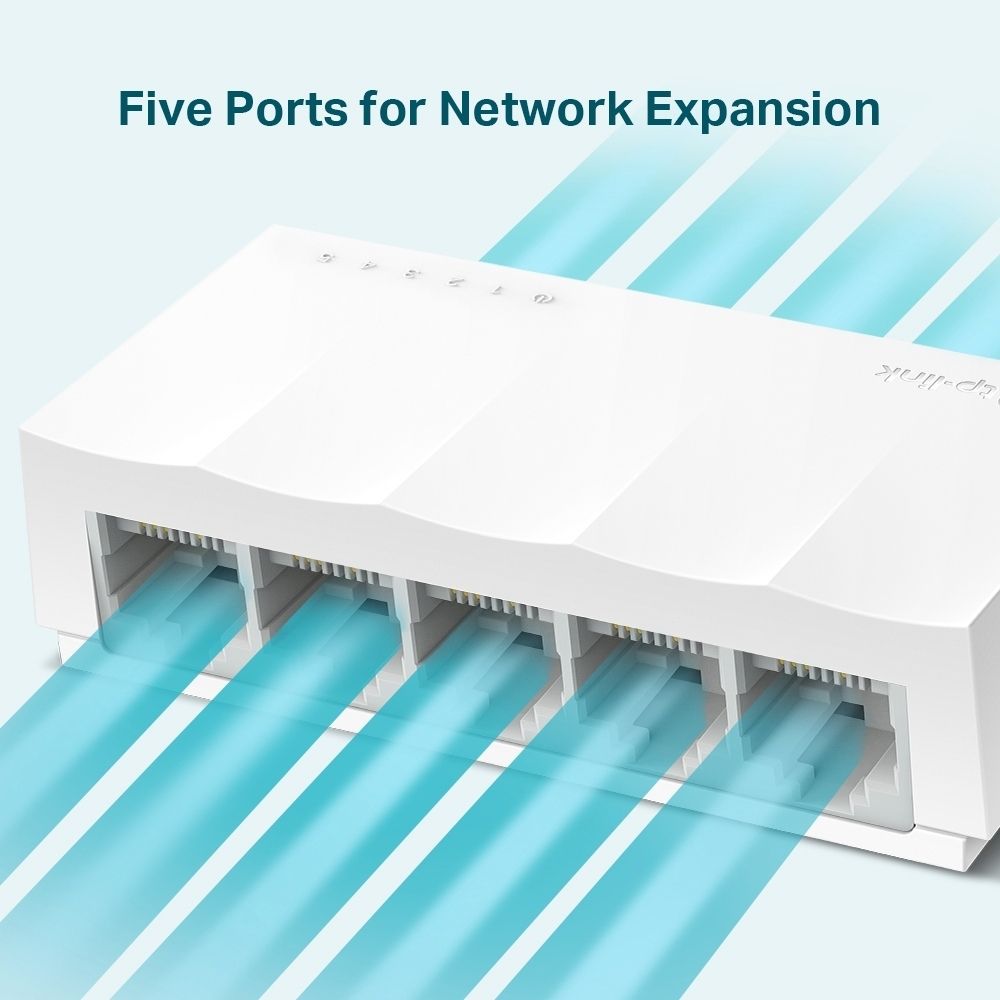

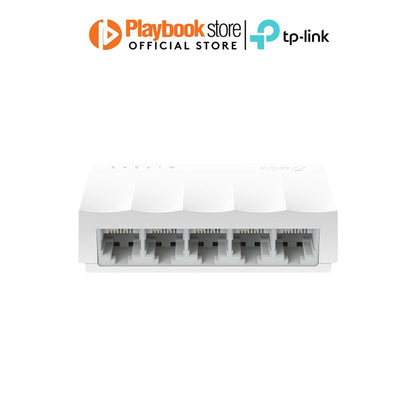

TP-Link LS1005 5 Port 10/100Mbps Ethernet Network Desktop Switch

𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!

𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
HARDWARE FEATURES:
• Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x
• Interface: 5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 5VDC/0.6A)
• Max Power Consumption: 3.7W
• Max Heat Dissipation: 12.617 BTU/h
• PERFORMANCE:
• Switching Capacity:10 Gbps
• Packet Forwarding Rate: 7.4 Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1.5 Mb
• Jumbo Frame: 16 KB

SOFTWARE FEATURES:
• Advanced Features:
• Green Technology
• 802.3X Flow Control
• Back Pressure
• Certification: CE, FCC, RoHS

𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• ( W x D x H ): 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)

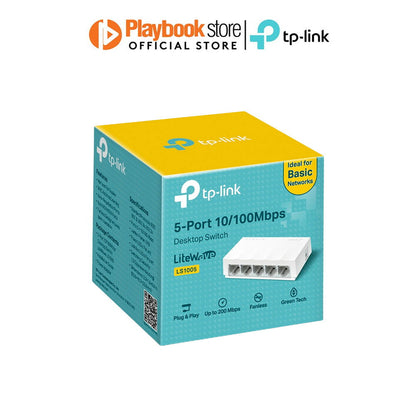

𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦
• 5-Port 10/100Mbps Desktop Switch
• Power Adapter
• Installation Guide
