𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
HARDWARE FEATURES
• Interface: Fast Ethernet (RJ-45) Port *1 (Support Passive PoE）
• Button: Reset
• Power Supply: 24VDC / 0.6A Passive PoE Supply
• Power Consumption: 6.3 W
• Antenna Type: 2*5dBi External Omni waterproof
• Weatherproof Enclosure: IP65

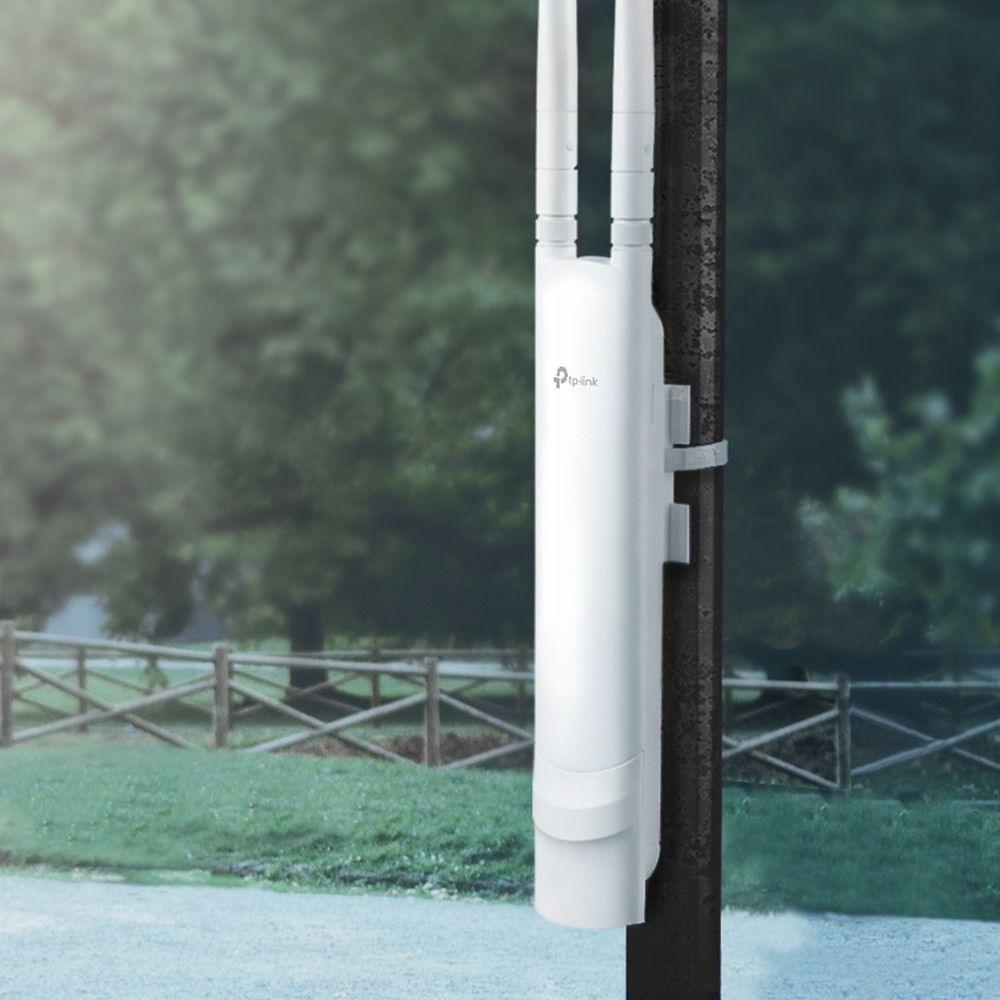

• Mounting: Pole / Wall Mounting (Kits included)
WIRELESS FEATURES
• Wireless Standards: IEEE 802.11n/g/b
• Frequency: 2.4GHz
• Signal Rate
• 11n: Up to 300Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Transmit Power
• CE: <20dBm
• FCC: <27dBm
• Wireless Functions
• Multiple SSIDs (Up to 8 SSIDs）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm）
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise,
• WPA-PSK / WPA2-PSK
MANAGEMENT
• Omada Cloud Access: Yes
• Omada App: Yes
• Omada Cloud Controller: Yes
• Auranet Controller Software: Yes
• Omada Controller Software: Yes
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: Yes
• System Logging Local/Remote Syslog: Yes
• Telnet: Yes
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management VLAN: Yes
OTHERS
• Certification: CE, FCC, RoHS
𝗦𝗬𝗦𝗧𝗘𝗠 𝗥𝗘𝗤𝗨𝗜𝗥𝗘𝗠𝗘𝗡𝗧𝗦
• System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦

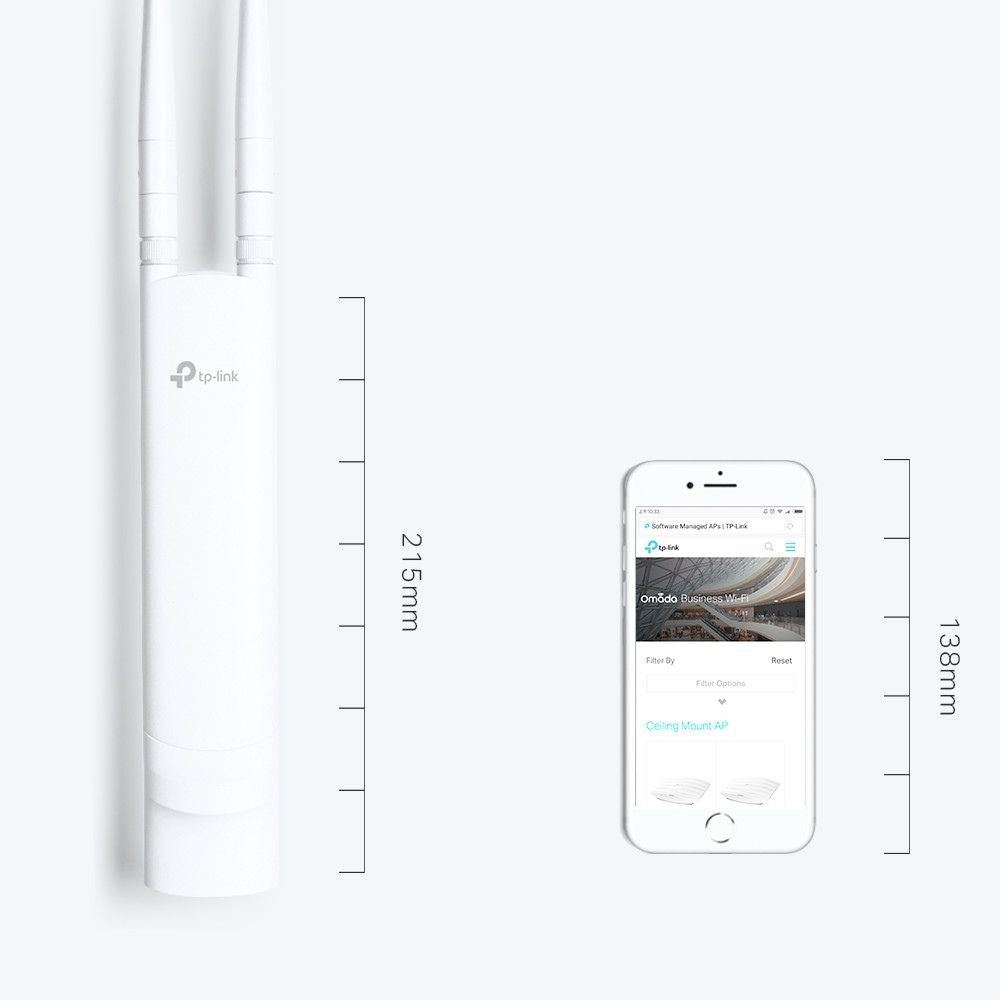

• Dimensions ( W x D x H ): 8.2 × 3.7 × 1.7 in. (209 × 95 × 42.6 mm)
𝗪𝗔𝗥𝗥𝗔𝗡𝗧𝗬
• Service: The Playbook Store Offers 1-Year Service Warranty Only.
• Product: 1-Year Manufacturers Warranty (Kindly send us a message on how to claim the Warranty.)
