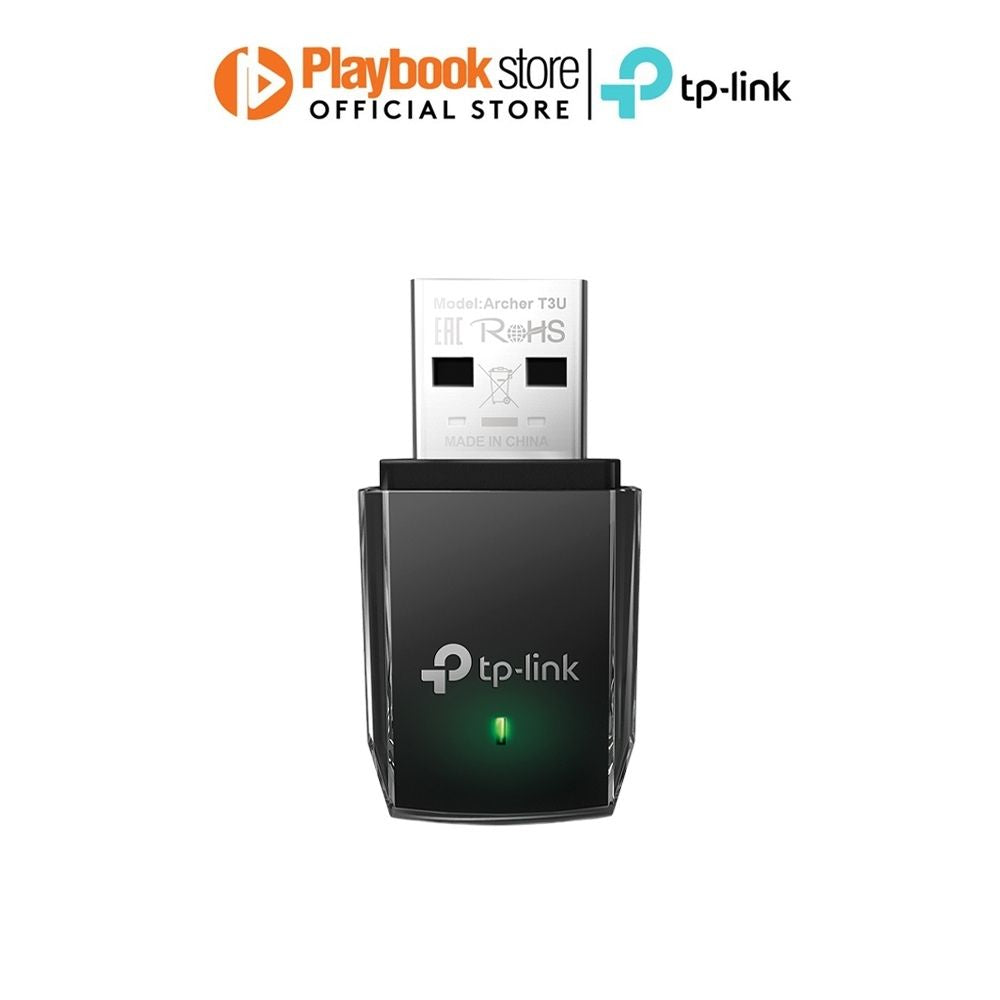

TP-Link Archer T3U AC1300 Mini Wireless MU-MIMO Dual-Band USB Adapter

𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!

𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
HARDWARE FEATURES
• Interface: USB 3.0
• Antenna Type: Internal

WIRELESS FEATURES
• Wireless Standards
• IEEE 802.11ac, IEEE 802.11a,
• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 5GHz, 2.4GHz
• Signal Rate
• 5GHz
• 11ac: Up to 867Mbps(dynamic)
• 11n: Up to 300Mbps(dynamic)
• 11a: Up to 54Mbps(dynamic)
• 2.4GHz
• 11n: Up to 400Mbps(dynamic)
• 11g: Up to 54Mbps(dynamic)
• 11b: Up to 11Mbps(dynamic)
• Reception Sensitivity
• 5GHz
• 11a 6Mbps: -91dBm
• 11a 54Mbps: -76dBm
• 11n HT20：-71dBm
• 11n HT40：-70dBm
• 11ac HT20: -68dBm
• 11ac HT40: -64dBm
• 11ac HT80: -62dBm
• 2.4GHz
• 11b 11Mbps: -86dBm
• 11g 54Mbps: -73dBm
• 11n HT20: -71dBm
• 11n HT40: -70dBm
• Transmit Power: <23dBm (EIRP)
• Wireless Modes: Ad-Hoc / Infrastructure Mode
• Wireless Security: Support 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
• Environment
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

𝗦𝗬𝗦𝗧𝗘𝗠 𝗥𝗘𝗤𝗨𝗜𝗥𝗘𝗠𝗘𝗡𝗧𝗦
• Windows 10/8.1/8/7/XP, Mac OS X 10.9-10.14

𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Dimensions ( W x D x H ): 1.59 × 0.78 × 0.41in. (40.5 × 19.72 × 10.29mm)

𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦

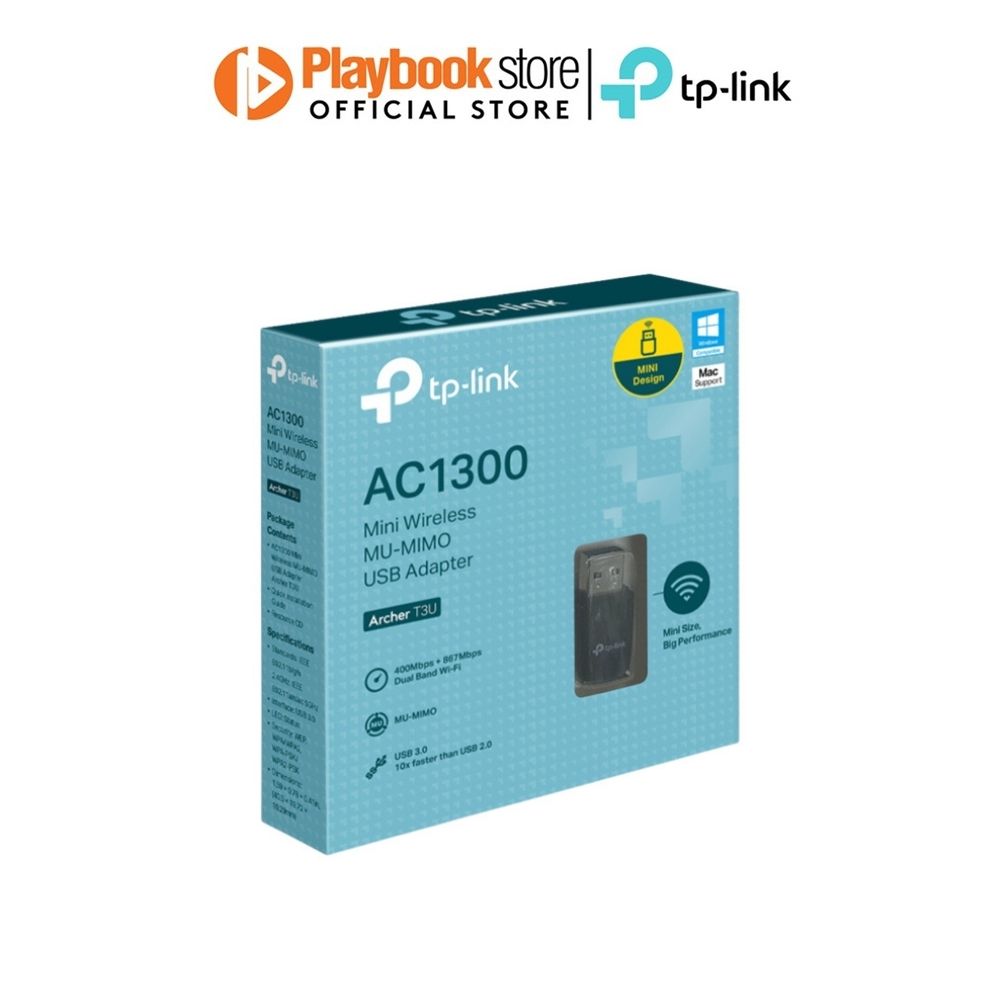

• Archer T3U AC1300 Mini Wireless MU-MIMO USB Adapter
• Quick Installation Guide
• Resource CD
