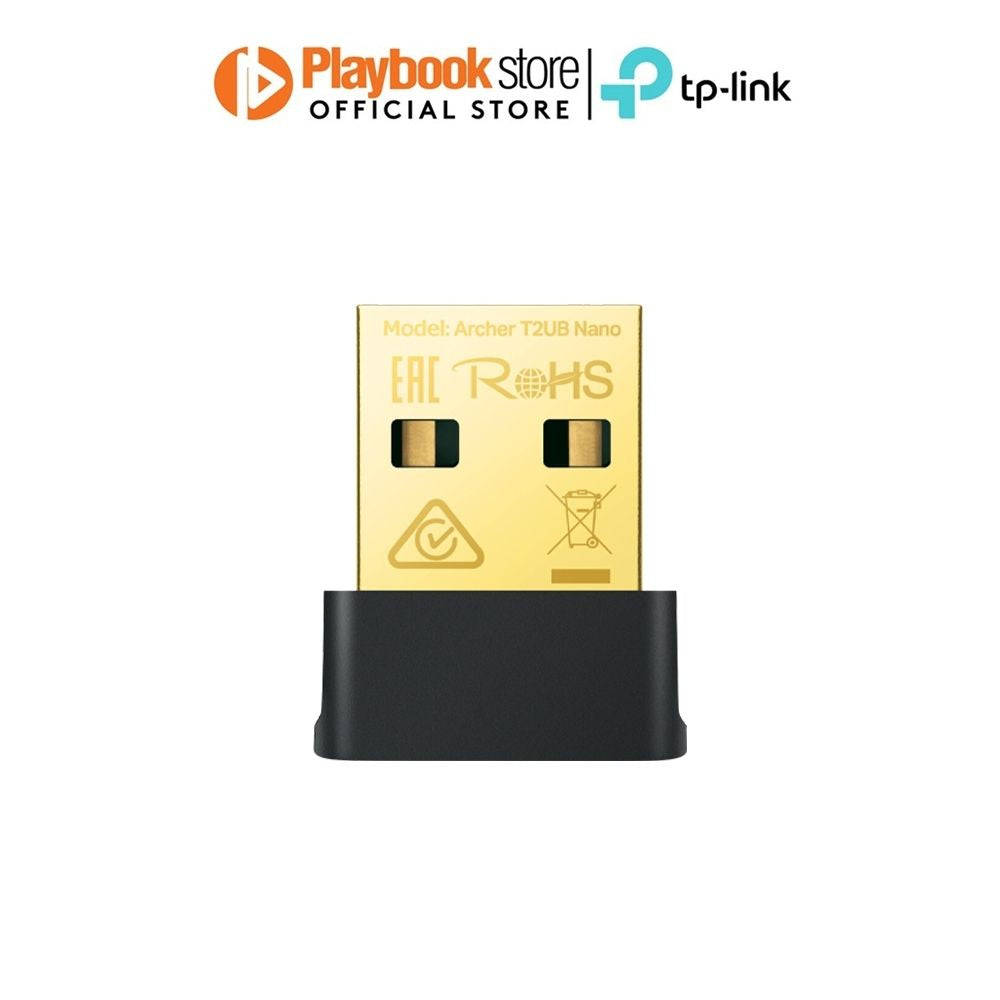

TP-Link Archer T2UB Nano AC600 Wi-Fi Bluetooth 4.2 Wireless USB Adapter

𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!

𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
Hardware Features
• Interface: USB 2.0
• Antenna Type: Omni Directional

Wireless Features
• Wireless Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 5GHz, 2.4GHz
• Wireless Modes: Ad-Hoc / Infrastructure mode
• Wireless Security: WPA/WPA2/WPA3 encryption standards
• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

Signal Rate
• 5GHz
- 11ac: Up to 433Mbps(dynamic)
- 11n: Up to 150Mbps(dynamic)
- 11a: Up to 54Mbps(dynamic)
• 2.4GHz
- 11n: Up to 200Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)

Reception Sensitivity
• 5GHz：
- 11a 6Mbps: -90dBm
- 11a 54Mbps: -73dBm
- 11n HT20 MCS0: -89dBm
- 11n HT20 MCS7: -70dBm
- 11n HT40 MCS0: -86dBm
- 11n HT40 MCS7: -67dBm
- 11ac VHT80 MCS0: -82dBm
- 11ac VHT80 MCS9: -56dBm
• 2.4GHz:
- 11b 1Mbps: -96dBm
- 11b 11Mbps: -88dBm
- 11g 6Mbps: -89dBm
- 11g 54Mbps: -74dBm
- 11n HT20 MCS0: -89dBm
- 11n HT20 MCS7: -72dBm
- 11n HT40 MCS0: -86dBm
- 11n HT40 MCS7: -66dBm

Environment
• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

𝗦𝗬𝗦𝗧𝗘𝗠 𝗥𝗘𝗤𝗨𝗜𝗥𝗘𝗠𝗘𝗡𝗧𝗦
• Wi-Fi: Win 11/10/8.1/8/7
• Bluetooth: Win 11/10/8.1/7

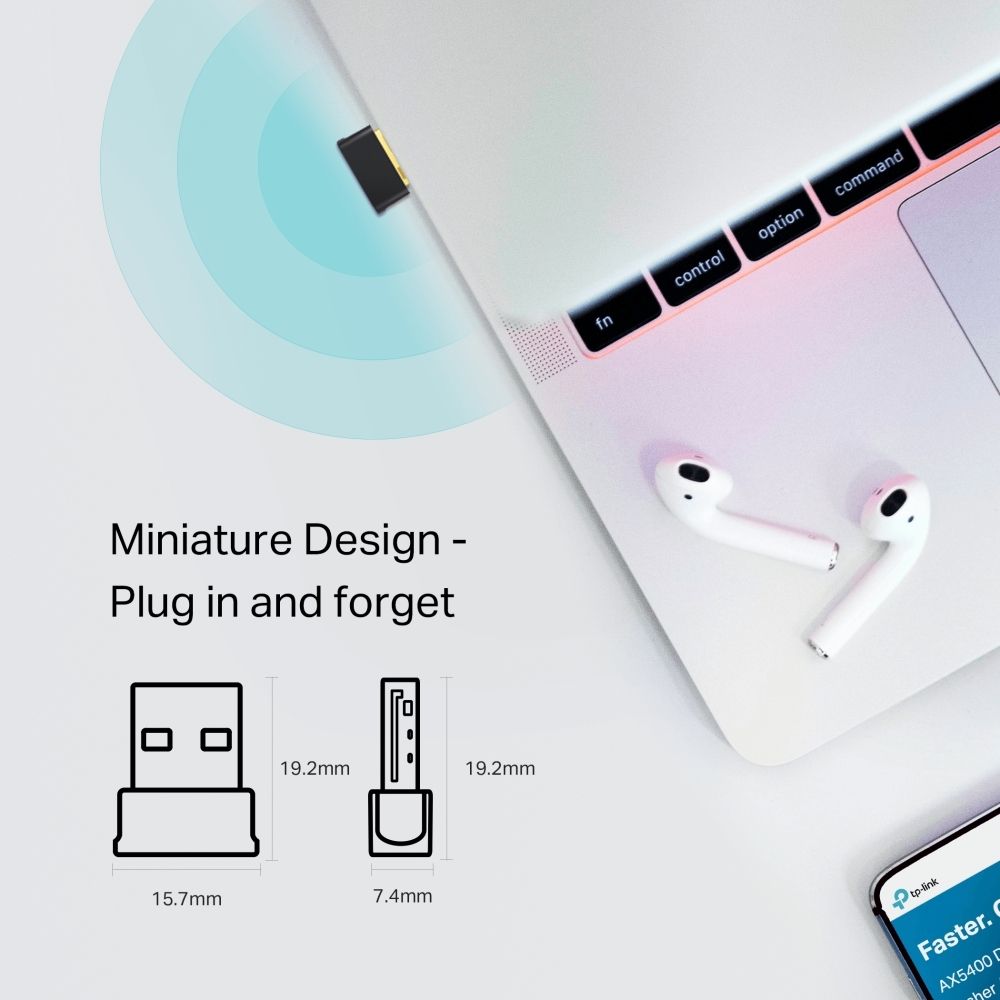

𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• L x W x D: 15.7 x 7.4 x 19.2 mm

𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦
• AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter Archer T2UB Nano
• Resource CD
• Quick Installation Guide
