𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
𝗪𝗜𝗥𝗘𝗟𝗘𝗦𝗦
• Standards: Wi-Fi 5
• IEEE 802.11ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz
• Wi-Fi Speeds: AC1200
• 5 GHz: 867 Mbps (802.11ac)
• 2.4 GHz: 400 Mbps (802.11n)
• Wi-Fi Range: 3 Bedroom Houses
• 4× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas

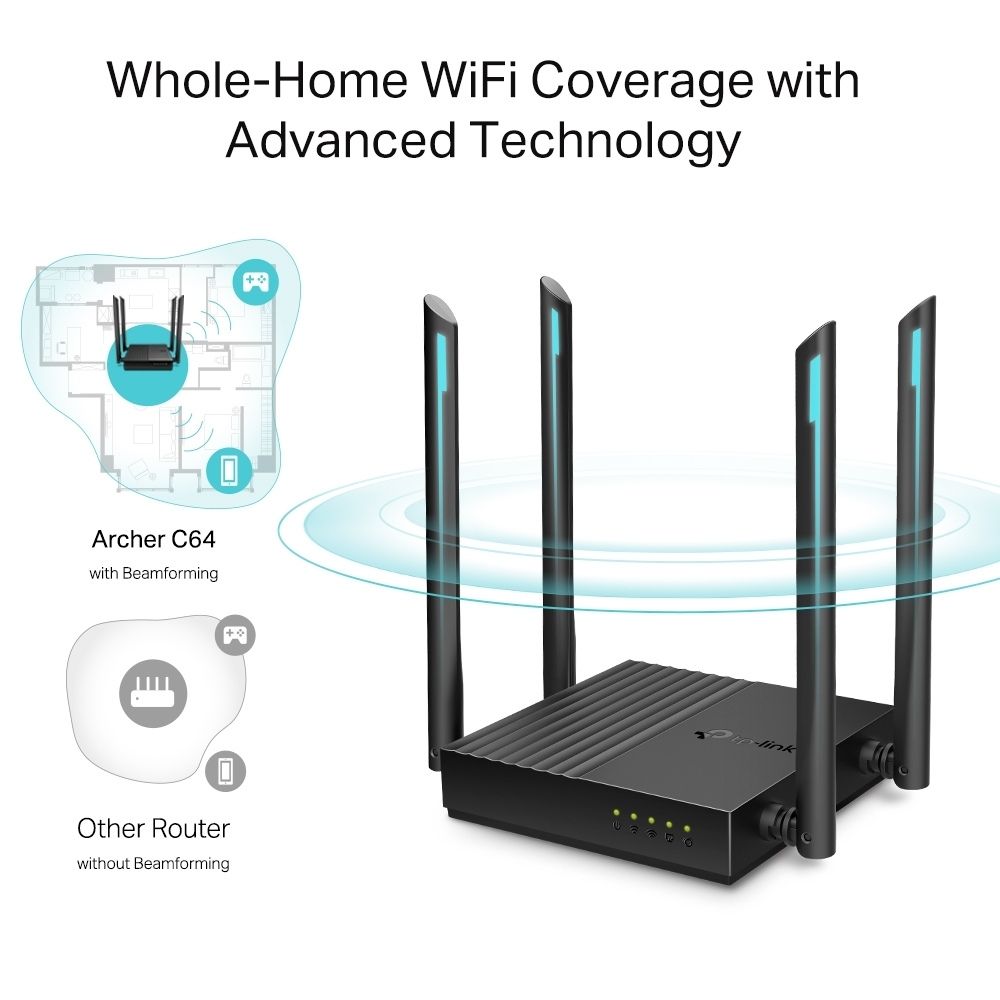

• Beamforming
• Concentrates wireless signal strength towards clients to expand W-iFi range
• Wi-Fi Capacity: Medium
• Dual-Band
• Allocate devices to different bands for optimal performance
• MU-MIMO
• Simultaneously communicates with multiple MU-MIMO clients
• Working Modes: Router Mode
• Access Point Mode
𝗛𝗔𝗥𝗗𝗪𝗔𝗥𝗘
• Processor: 1.2 GHz CPU

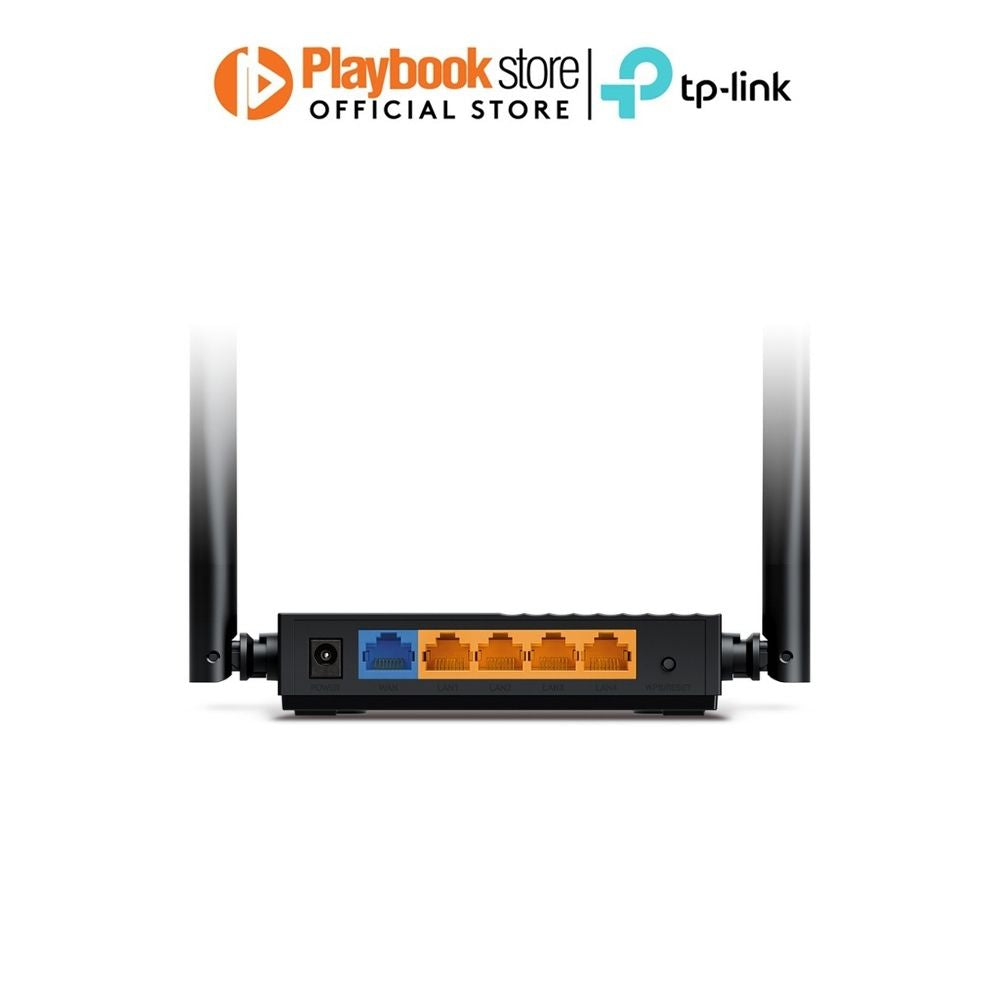

• Ethernet Ports: 1× Gigabit WAN Port
• 4× Gigabit LAN Ports
• Buttons: WPS/Reset Button
• Power: 12V = 1A
𝗦𝗘𝗖𝗨𝗥𝗜𝗧𝗬
• Wi-Fi Encryption: WPA/WPA2, WPA-PSK/WPA2-PSK/WPA3-SAE encryptions
• Network Security: SPI Firewall, IP and MAC Address Binding
• Guest Network: 2.4 GHz Guest Network
• 5 GHz: Guest Network
𝗦𝗢𝗙𝗧𝗪𝗔𝗥𝗘
• Protocols: IPv4
• IPv6
• Parental Controls: URL Filtering
• Time Controls
• WAN Types: Dynamic IP
• Static IP
• PPPoE(Dual Access)
• PPTP(Dual Access)
• L2TP(Dual Access)
• Quality of Service: QoS by Device
• Cloud Service: OTA Firmware Upgrade
• TP-Link ID
• DDNS
• NAT Forwarding: Port Forwarding
• Port Triggering
• UPnP
• DMZ
• IPTV: IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
• DHCP: Server
• DHCP Client List
• Address Reservation
• DDNS: TP-Link
• NO-IP
• DynDNS
• Management: Tether App
• Webpage
• Check Web Emulator>
𝗧𝗘𝗦𝗧 𝗗𝗔𝗧𝗔
• Wi-Fi Transmission Power: CE:
• <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
• FCC:
• <30dBm(2.4 GHz & 5 GHz)
• Wi-Fi Reception Sensitivity: 5 GHz:
• 11a 6Mbps:-95dBm
• 11a 54Mbps:-77dBm
• 11ac VHT20 MCS8:-71dBm
• 11ac VHT40 MCS9:-67dBm
• • 11ac VHT80 MCS9:-63dBm
• 2.4 GHz:
• 11g 6Mbps: -96dBm
• 11g 54Mbps: -78dBm
• 11n HT20 MCS7:-77dBm
• 11n HT40 MCS7:-74dBm
• 11ac VHT20 MCS8:-73dBm
• 11ac VHT40 MCS9:-68dBm
Package Contents

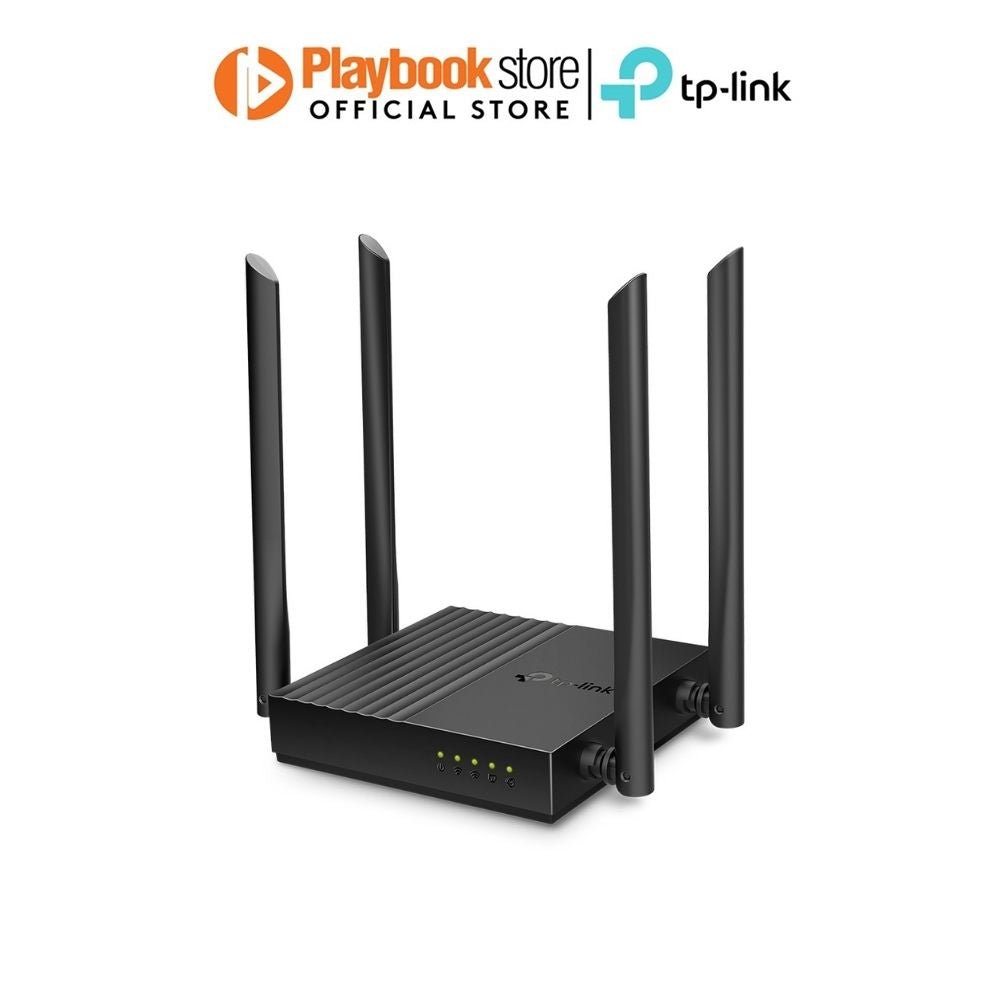

• Wireless Router Archer C64
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm)
