𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
Standards
• Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
Wi-Fi Speeds
• AX1800
• 5 GHz: 1201 Mbps (802.11ax)
• 2.4 GHz: 574 Mbps (802.11ax)
Wi-Fi Range
• 3 Bedroom Houses
• 4× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming
• Concentrates wireless signal strength towards clients to expand Wi-Fi range
Wi-Fi Capacity
• High
• Dual-Band
• Allocate devices to different bands for optimal performance
• OFDMA
• Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness
• Improves network efficiency by limiting excessive occupation
• 4 Streams
• Connect your devices to more bandwidth
Working Modes
• Router Mode
• Access Point Mode
HARDWARE
Processor
• Dual-Core CPU

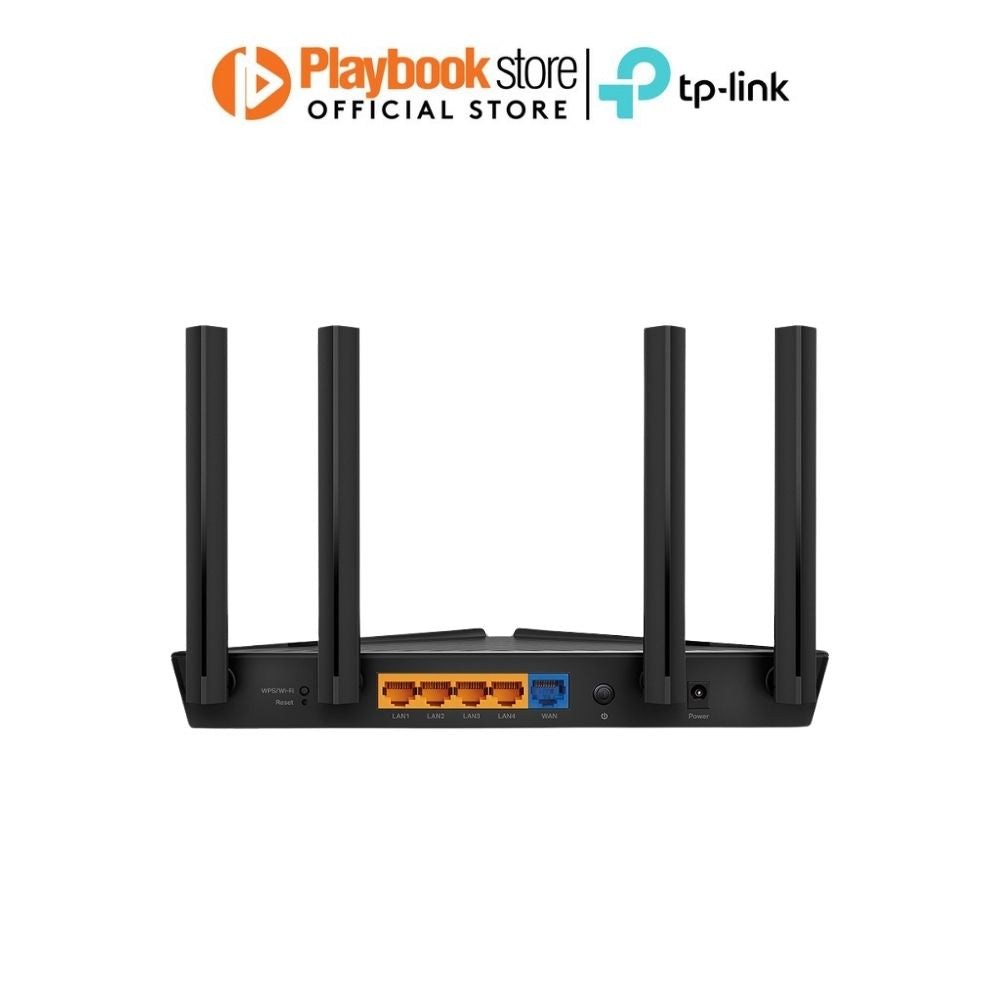

Ethernet Ports
• 1× Gigabit WAN Port
• 4× Gigabit LAN Ports
Buttons
• WPS/Wi-Fi Button
• Power On/Off Button
• LED On/Off Button
• Reset Button
Power
• 12 V ⎓ 1 A
SECURITY
Wi-Fi Encryption
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
Network Security
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server
• OpenVPN
• PPTP
SOFTWARE
Protocols
• IPv4
• IPv6
Parental Controls
• URL Filtering
• Time Controls
WAN Types
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service
• QoS by Device
Cloud Service
• Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP
• Address Reservation
• DHCP Client List
• Server
DDNS
• TP-Link
• NO-IP
• DynDNS
Management
• Tether App
• Webpage
TEST DATA
Wi-Fi Transmission Power
• CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
• FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
System Requirements
• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
Certifications
• FCC, CE, RoHS
Environment
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦

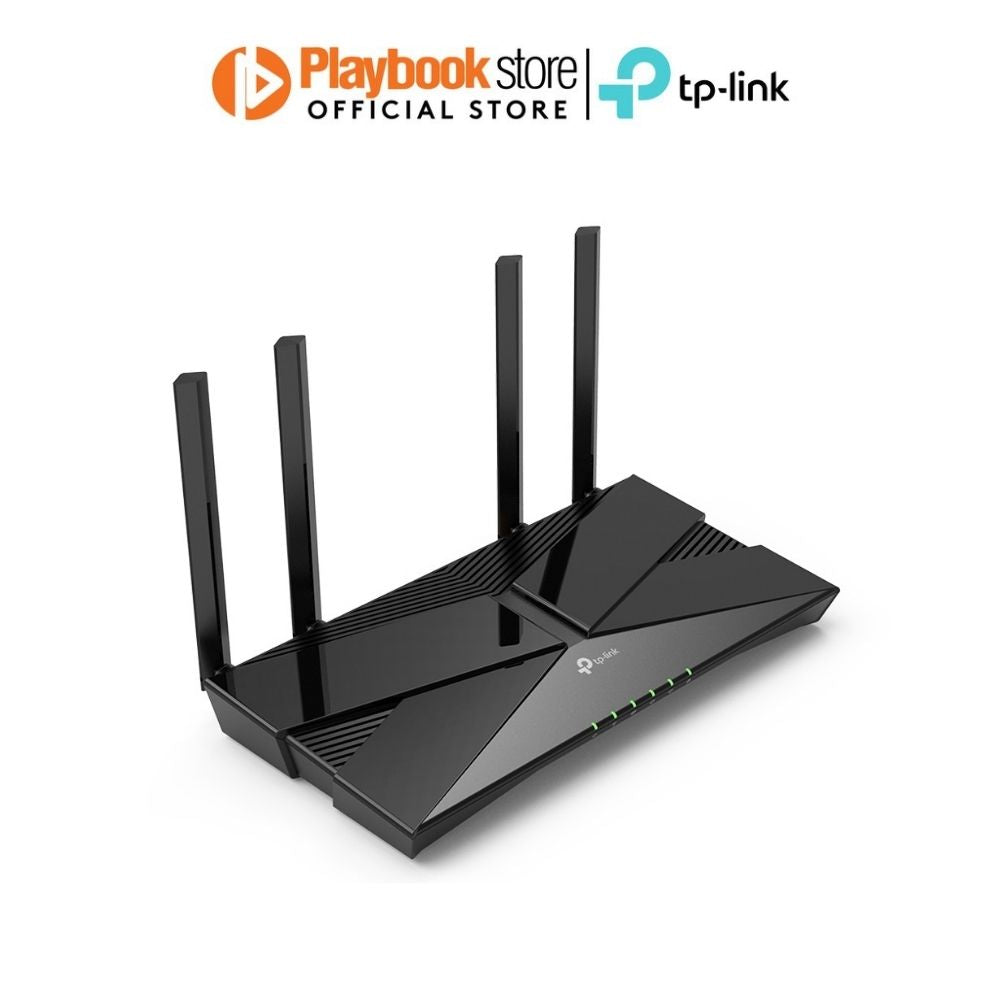

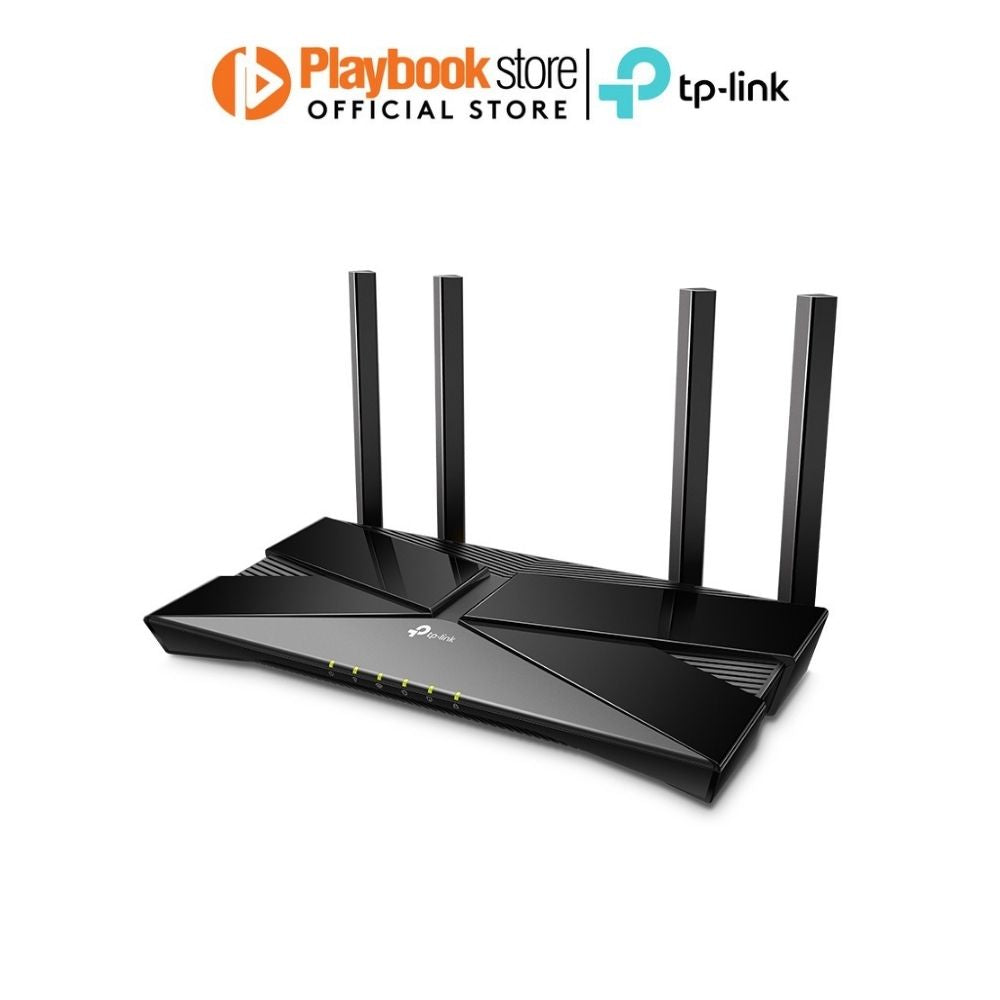

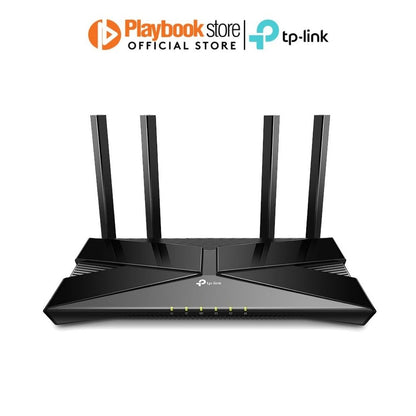

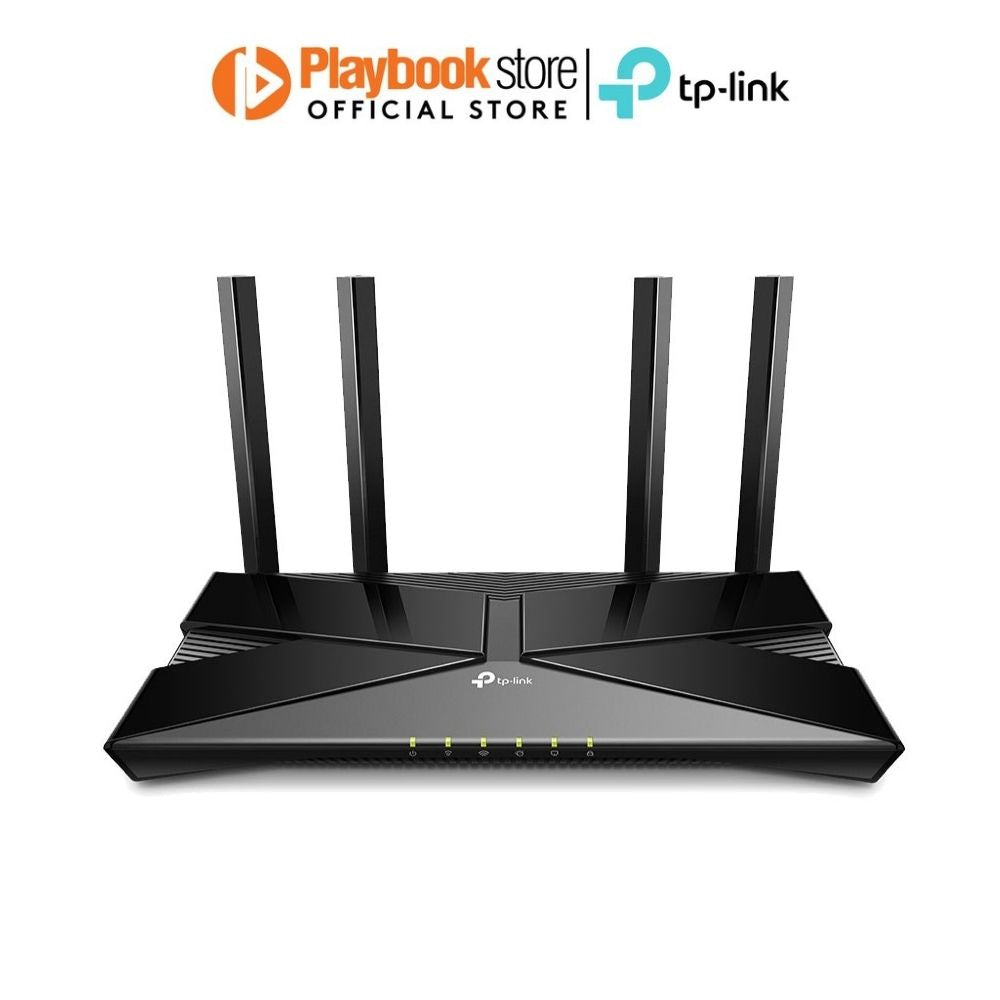

• Wi-Fi Router Archer AX23
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
Dimensions (W×D×H)
• 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm)
