𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
Standards
• Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz
Wi-Fi Speeds
• AX1500
• 5 GHz: 1201 Mbps (802.11ax)
• 2.4 GHz: 300 Mbps (802.11n)
Wi-Fi Range
• 2-3 Bedroom Houses
• 4× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming
• Concentrates wireless signal strength towards clients to expand Wi-Fi range
Wi-Fi Capacity
• High
• Dual-Band
• OFDMA
• Airtime Fairness
• 4 Streams
Working Modes
• Router Mode
• Access Point Mode
Hardware
• Ethernet Ports: 1× Gigabit WAN Port, 3× Gigabit LAN Ports
• Buttons: WPS/Reset Button
• Power: 12 V ⎓ 1 A
Wi-Fi Encryption
• WPA2-PSK
• WPA2-PSK/WPA-PSK
• WPA3-Personal
• WPA3-Personal/WPA2-PSK
• WPA2-Enterprise
• WPA/WPA2-Enterprise encryptions
Network Security SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
VPN Server
• OpenVPN
• PPTP
System Requirements
• Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC
• OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
• Java-enabled browser
• Cable or DSL Modem
• Subscription with an internet service provider (for internet access)
Environment
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦

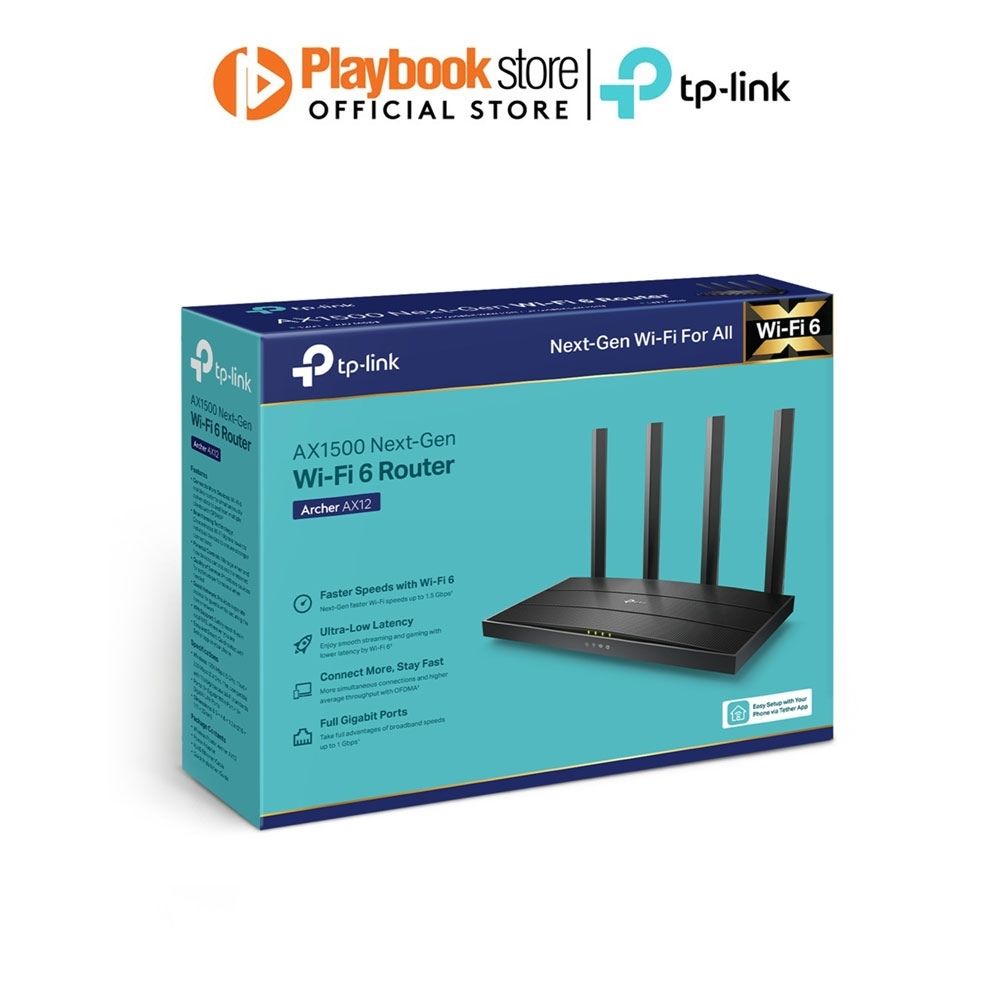

• Wireless Router Archer AX12
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• L x W x H: 8.5 × 4.6 ×1.3 in (215 × 117 × 32 mm)
