𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦
• Model: TUF Gaming AX4200
• Network Standard
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6
• Product Segment: AX4200 ultimate AX performance: 574+3603 Mbps
• AX technology: Yes
• Data Rate
• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps
• Antenna: External antenna x 4
• Transmit/Receive
• 2.4GHz 2x2
• 5GHz 3x3
• Processor: 2.0 GHz quad-core processor
• Memory
• 256 MB Flash
• 512 MB RAM
• Boosts speed
• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth
• Operating Frequency: 2.4GHz / 5GHz

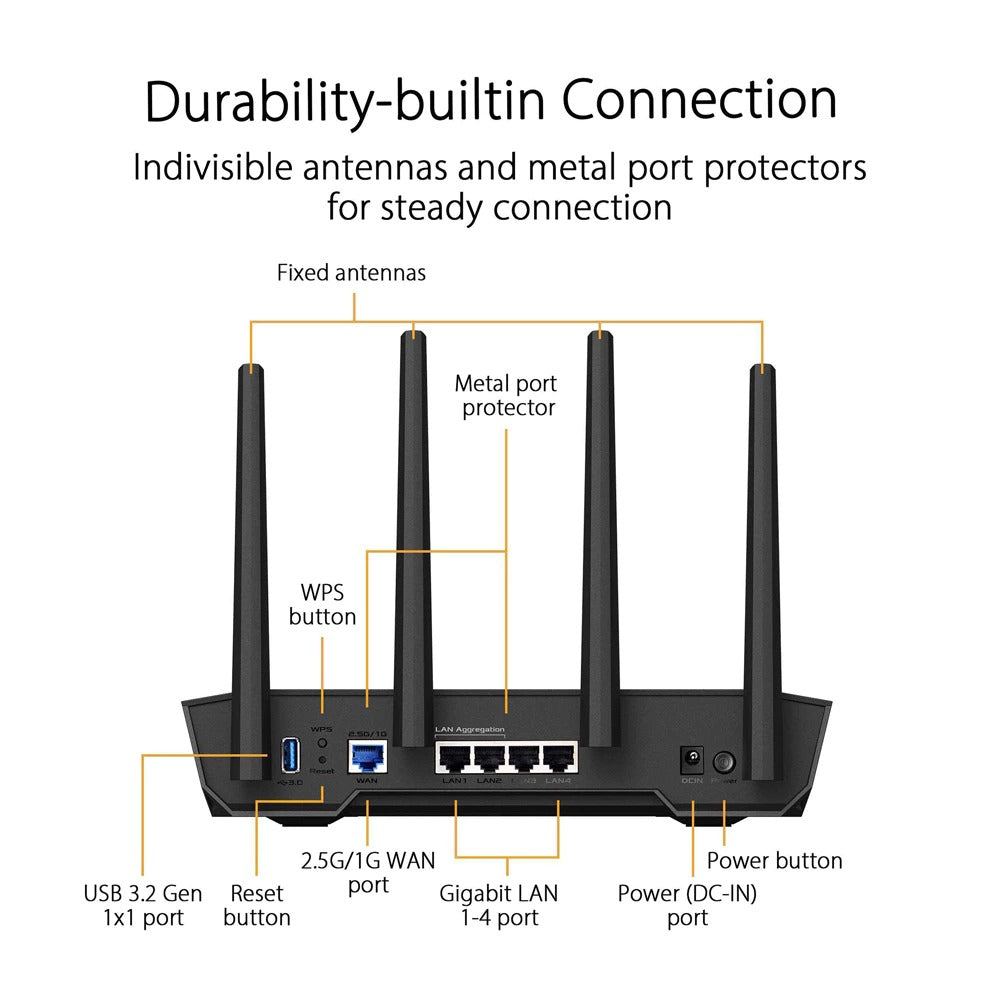

• Ports

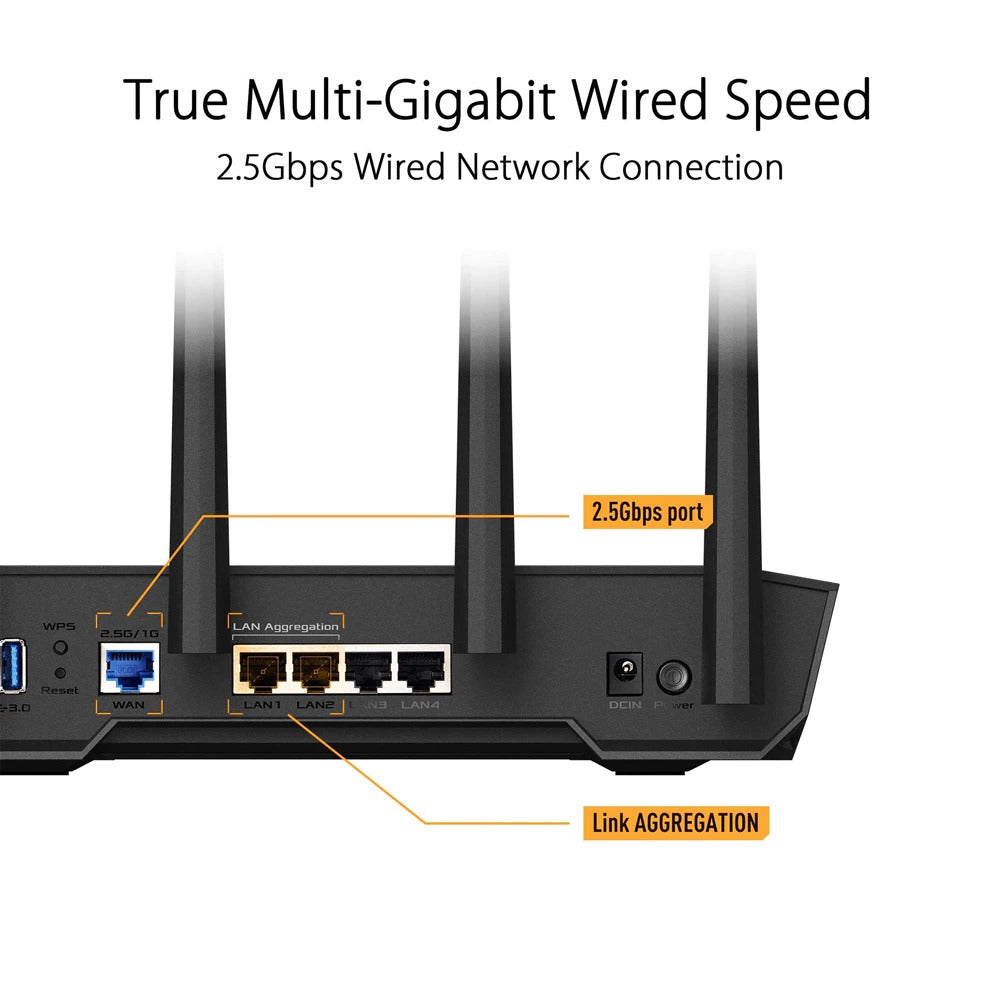

• RJ45 for 2.5 Gigabits BaseT for WAN x 1,
• RJ45 for Gigabits BaseT for LAN x 4,
• USB 3.2 Gen 1 x 1,
• Button: WPS Button, Reset Button, Power Button
• LED Indicator
• Power x 1
• 2.4G x 1
• 5G x 1
• LAN x 4
• WAN x 1
• Power Supply
• AC Input : 100V~240V (50~60Hz)
• DC Output : 12 V with max. 2.5 A current
• AiMesh
• AiMesh
• Primary AiMesh router
• AiMesh node
• Router APP: ASUS Router APP
• Game: Game Boost / Acceleration
• AiProtection
• AiProtection Pro
• AiProtection
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
• Wireless
• IPv6
• Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection time limit
• WPS
• WiFi MAC address filter
• Maximum MAC filters : 64
• Wireless scheduler
• Airtime fairness
• RADIUS Client
• Universal beamforming
• Explicit beamforming
• WAN
• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• 3G/4G LTE dongle
• Android tethering
• Port forwarding
• Maximum port forwarding rule : 64
• Port triggering
• Maximum port triggering rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
• Safe browsing
• DNS-over-TLS
• LAN
• DHCP Server
• IPTV
• LAN Link Aggregation
• Manually assign IP address
• Maximum manually assign IP address rule : 64
• VPN
• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• USB application
• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• 3G/4G LTE dongle
• Safely Remove disk
• AiCloud
• Download master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder privileges
𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦
• TUF Gaming AX4200 Dual Band WiFi 6 router
• RJ-45 cable
• Power adapter
• Quick Start Guide
• Warranty card
𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦
• Product Weight (g): 547.4 g
𝗪𝗔𝗥𝗥𝗔𝗡𝗧𝗬
• Service: the Playbook store Offers 1-Year Service Warranty Only.
• Product: 1-Year Manufacturers Warranty (Kindly send us a message on how to claim the Warranty.)
