𝗕𝗥𝗔𝗡𝗗 𝗡𝗘𝗪 𝗔𝗡𝗗 𝗢𝗥𝗜𝗚𝗜𝗡𝗔𝗟!
𝗦𝗣𝗘𝗖𝗜𝗙𝗜𝗖𝗔𝗧𝗜𝗢𝗡𝗦

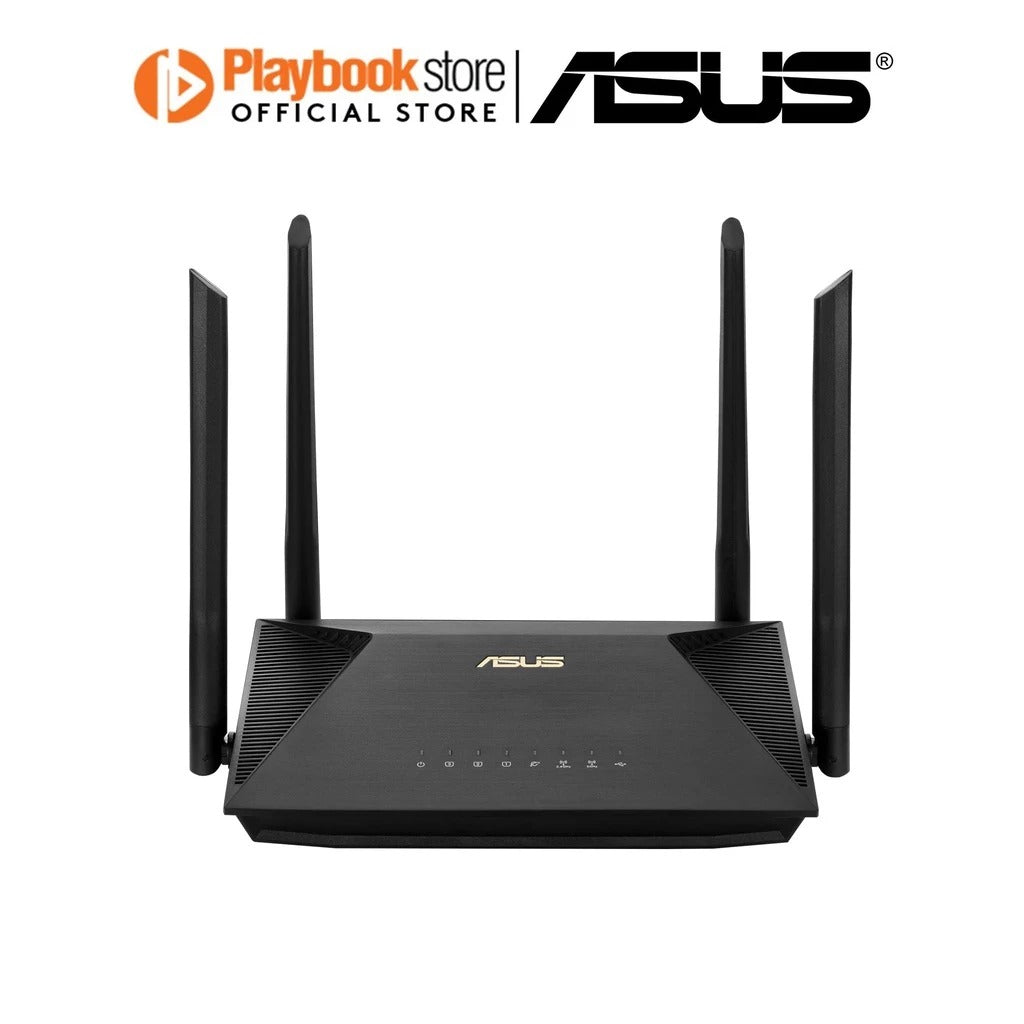

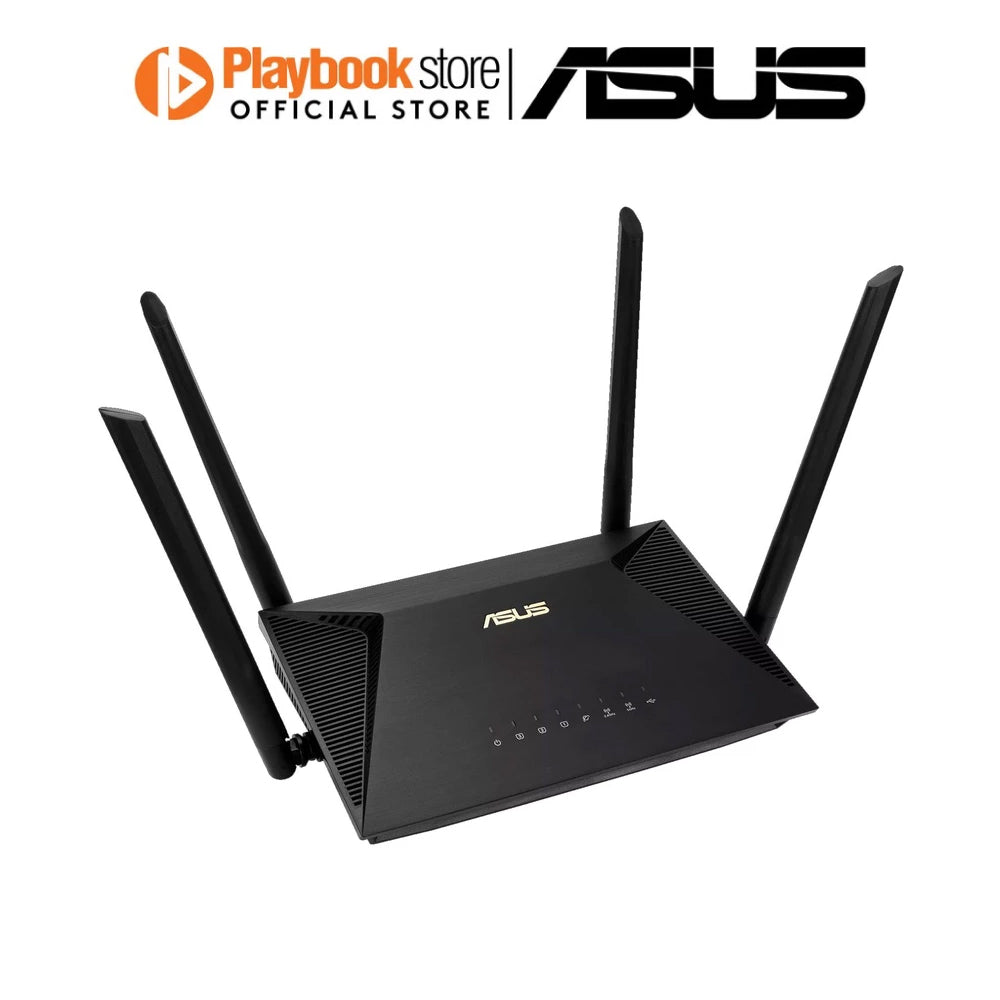

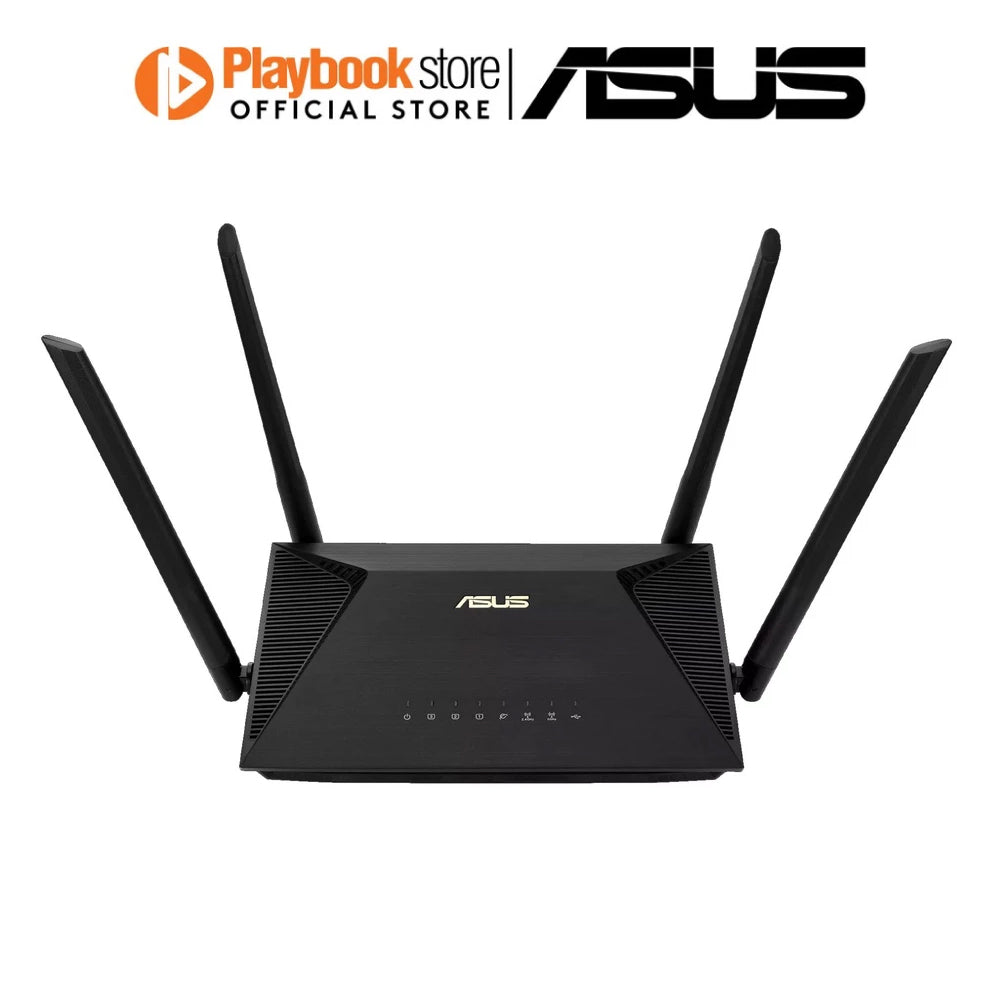

• Model: RT-AX53U
• AX technology: Yes
• Antenna: Ex-antennas*4
• Processor: Dual-core (4 VPE)
• Operating Frequency: 2.4G Hz / 5 GHz
Network Standard
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6
Product Segment
• AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
Data Rate
• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• WiFi 5 (802.11ac) : up to 867 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
Transmit/Receive
• 2.4GHz 2x2
• 5GHz 2x2
Memory
• 128 MB Flash
• 256 MB RAM
Boosts speed
• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80 MHz bandwidth

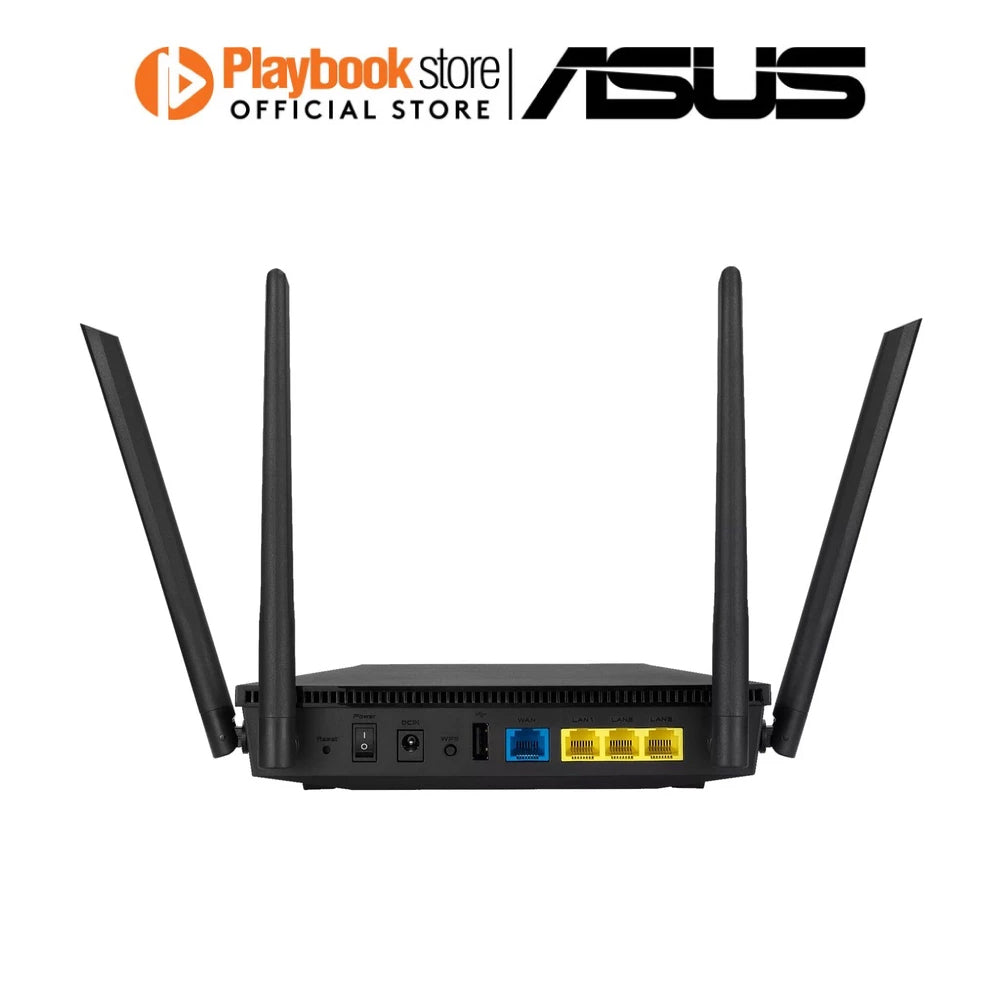

Ports
• RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3,USB Port x1
Button
• WPS Button, Reset Button, Power Switch
LED Indicator
• Power x 1
• 2.4G x 1
• 5G x 1
• LAN x 3
• WAN x 1
• USBX1
Power Supply
• AC Input : 100V~240V(50~60Hz)
• DC Output : 12 V with max. 1.5A current
AiMesh
• AiMesh
• Primary AiMesh router
• AiMesh node
Router APP
• ASUS Router APP
Alexa
• Support Alexa skill
AiProtection
• AiProtection Classic
• Malicious site blocking
• Infected Device Prevention and Blocking
Parental Control
• Parental Control Customized Internet schedule
Traffic Control
• Bandwidth limiter
• Traditional QoS
• Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Wireless
• IPv6
• Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal
• UTF-8 SSID
• Guest Network
• WPS
• WiFi MAC address filter
• Wireless scheduler
• Airtime fairness
• RADIUS Client
• Universal beamforming
• Explicit beamforming
WAN
• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• 3G/4G LTE dongle
• Port triggering
• DMZ
• DDNS
• Let's Encrypt
LAN
• DHCP Server
• IPTV
• Manually assign IP address
VPN
• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
USB application
• 3G/4G LTE dongle
• Safely Remove disk
• Download master
• AiDisk
• Media Server
• Samba Server
• FTP Server
• Shared Folder privileges
Administration
• Operating mode : Access Point, Media Bridge, Repeater, Router
• Operating system : ASUSWRT
• Free OS upgrade
• Firewall
• SSH
• Wake on LAN (WOL)
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
𝗣𝗔𝗖𝗞𝗔𝗚𝗘 𝗖𝗢𝗡𝗧𝗘𝗡𝗧𝗦
• RT-AX53U
• RJ45 x1
• Adapter x1
• QSG x1
• Warranty Card x1
𝗪𝗔𝗥𝗥𝗔𝗡𝗧𝗬
• Service: the Playbook store Offers 1-Year Service Warranty Only.
• Product: 3-Years Manufacturers Warranty (Kindly send us a message on how to claim the Warranty.)
